We provide advanced Cooling Tower Automation Systems with 365x24x7 monitoring and intelligent process control to optimize chemical dosing, reduce water and energy consumption, and prevent corrosion, scaling, and microbial growth. These systems integrate real-time monitoring, automated dosing control, and data-driven performance management to improve plant reliability and efficiency.
Key Features of Cooling Tower Automation
- Continuous 24/7 monitoring and control of critical operating parameters
- Automated timer-based and responsive dosing of corrosion inhibitors, scale inhibitors, and biocides
- Real-time data logging every minute for troubleshooting and chemical optimization
- Custom-engineered skid-mounted dosing systems with storage tanks and pump assemblies
- Pre-tested turnkey solutions for fast installation and reliable operation
Benefits
- Improved operational efficiency through optimized chemical dosing and enhanced heat transfer
- Reduced water usage, chemical consumption, and energy costs
- Extended equipment life by minimizing scaling and corrosion
- Enhanced health and safety through reduced manual chemical handling
- Real-time troubleshooting support with actionable operating data
Water Treatment Applications
- Cooling Towers — control of scaling, corrosion, and microbial growth
- Closed Loop Systems — flushing, cleaning, and passivation for HVAC and chiller systems
- Process Water Systems — chemical dosing and industrial water management solutions
Built for durability, accuracy, and low lifecycle cost, our solutions are backed by internationally recognized quality management standards.

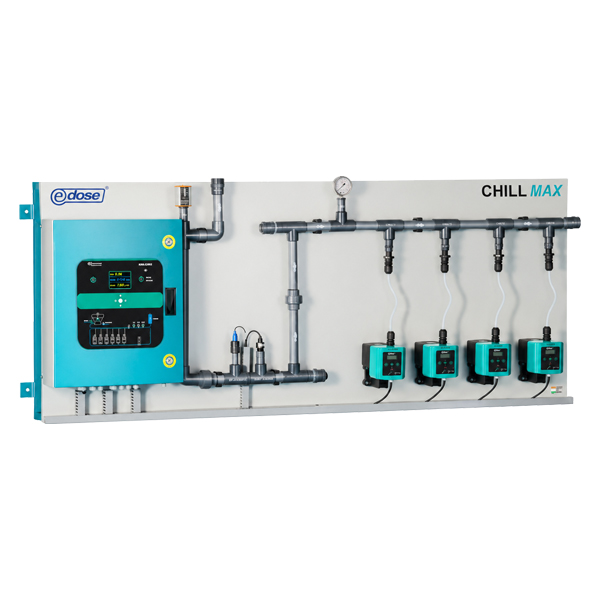

EDOSE CHILL MAX (COOLING TOWER)
Features
- Wall-mounting/stand-mounting type
- Free-standing skid
- Option to dose 6 chemicals
- Relay output to connect the bleed-off valve (Blow down valve not in our scope of supply)
- Smart controller fully automatic with capacitive touch keys
- Accurate dosing by measuring actual dosing flow
- Fortnight dosing program for biocides by using a real-time clock.
- Make up a flow proportional/time-based dosing program for antiscalant & corrosion inhibitor.
- Complete with 1” sampling line piping
- Online sensor for pH, ORP, Conductivity & makeup water
- PVDF dosing pump for sulfuric acid.
- 3.5” LCD display with fault indication
- The auto/manual option is available
- Option to enter amount of chemicals directly on the controller to be dosed (Antiscalant, Biocides & corrosion inhibitor)
- Corrosion rack assembly
- 3 separate analog inputs for corrosion/nitrite/chlorine/turbidity/etc. sensors
- Remote monitoring (optional)
- Pump fault alarm

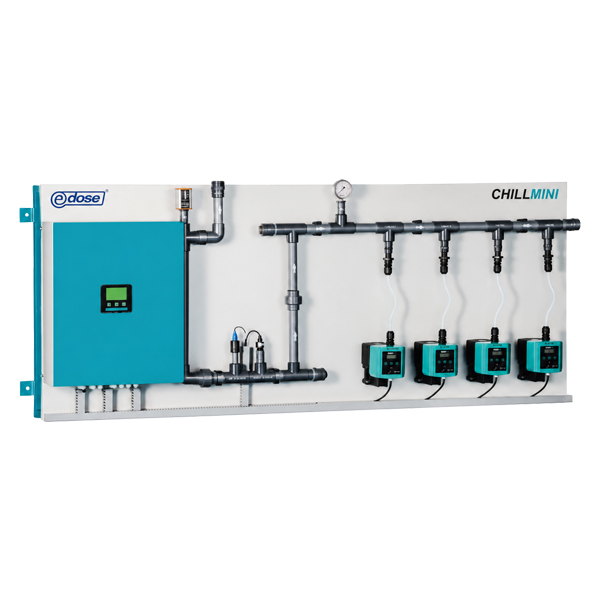

EDOSE CHILL MINI (COOLING TOWER)
Features
- Wall-mounting/stand-mounting type
- Option to dose 4 chemicals (sulfuric acid, Hypo/Biocide & Antiscalant)
- Relay output to connect Bleed-off valve
- Smart controller fully automatic with 3-key keypad
- Complete with 1” sampling line piping
- Online sensor for pH, ORP & conductivity
- Time-based control for Antiscalant & Biocide
- PVDF dosing pump for sulfuric acid
- 3.5” LCD display with fault indication
- Low-level switches (4 Nos) for chemicals
- Option to enter amount of chemicals to be dosed
- Remote Monitoring (Optional)
- Corrosion rack assembly

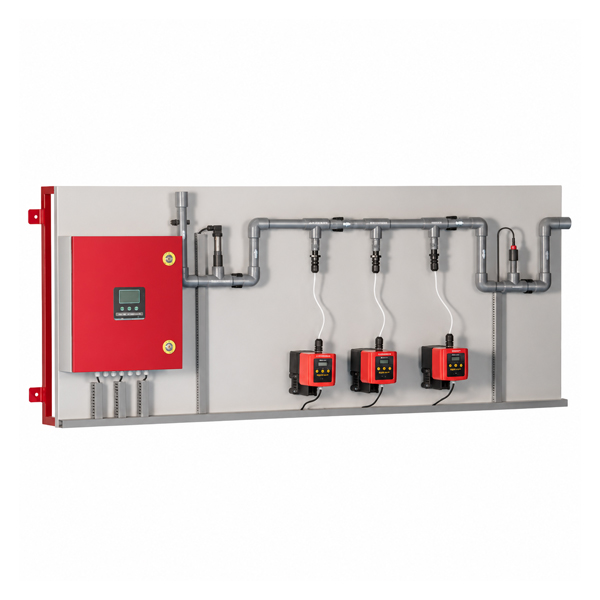

BOILER DOSING SYSTEM
Features
- Wall-mounting/stand-mounting type
- Option to dose 3 chemicals
- Temperature-compensated reading for pH/conductivity
- Proportional/fuzzy control logic for pH booster
- Remote Monitoring (Optional)
- Smart controller fully automatic with 3-key keypad
- Complete with 1” sampling line piping
- 3.5” LCD display with fault indication
- Low-level switches (3 Nos) for chemicals
- Option to enter amount of chemicals to be dosed
