STROMEN pressure vessels are engineered with reinforced fiberglass construction to deliver exceptional strength, performance, and long-term durability. Designed for demanding environments, these vessels are available in capacities from 63 ltr to 3400 ltr, with multiple port configurations and base options to suit diverse applications.
Key Features:
- Ideal for commercial and industrial water treatment
- 100% composite fiberglass construction
- Superior resistance to harsh chemical environments
- Corrosion-free design – will not rust
- Minimal maintenance requirements
- Easy to install
- Economical
- Longevity
| PRESSURE VESSEL SPECIFICATIONS | |
|---|---|
| Working Pressure | 10.5 kg/cm² |
| Max. Operating Temp. | 49°C |
| Max Vacuum (Neg. Pressure) | 127 mm Hg (5″ HG) |

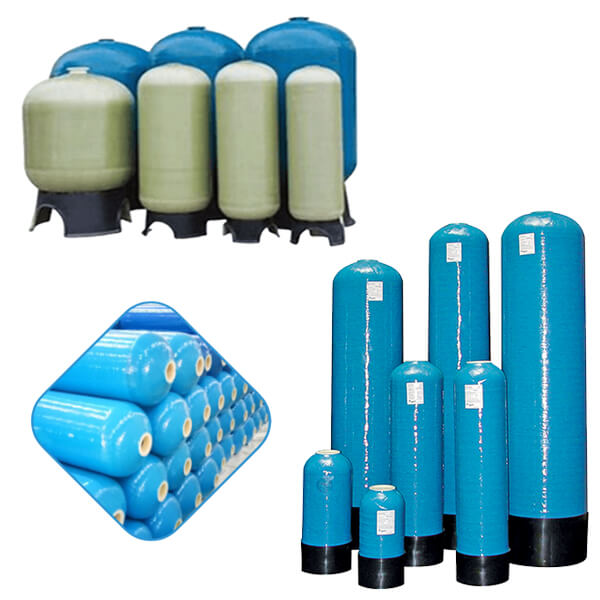

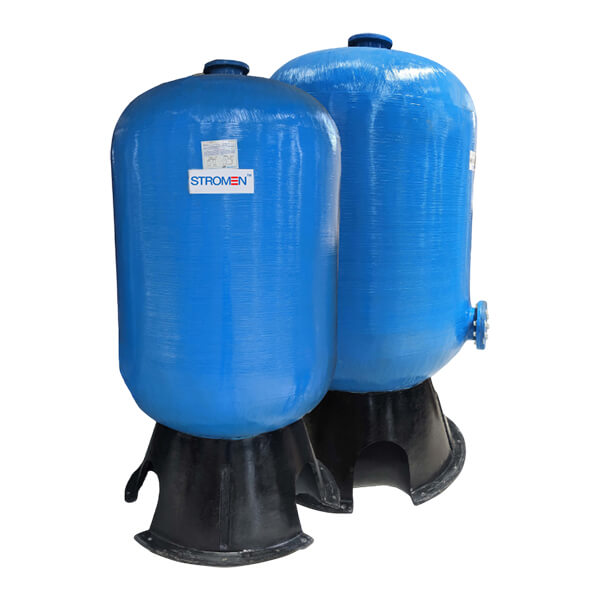

STROMEN PRESSURE VESSEL
STROMEN PRESSURE VESSEL
| Size (Inches) | Opening | Liner Material | Base | Dimensions (mm) | Capacity | ||||
|---|---|---|---|---|---|---|---|---|---|
| Top | Bottom | A Height W/ Base Dim | A Height W/o Base | “D” (Ø) | Liter | Gallon | |||
| 6 x 18 | 2.5″ 8-NPSM | – | PE | Standard | 435 | 415 | 155 | 6.8 | 1.8 |
| 6 x 35 | 2.5″ 8-NPSM | – | Standard | 910 | 890 | 155 | 14 | 3.7 | |
| 7 x 35 | 2.5″ 8-NPSM | – | Standard | 896 | 876 | 182 | 20.1 | 5.3 | |
| 7 x 44 | 2.5″ 8-NPSM | – | Standard | 1120 | 1100 | 182 | 25.6 | 6.8 | |
| 8 x 18 | 2.5″ 8-NPSM | – | Standard | 470 | 450 | 210 | 12.4 | 3.3 | |
| 8 x 30 | 2.5″ 8-NPSM | – | Standard | 770 | 750 | 210 | 22.3 | 5.9 | |
| 8 x 35 | 2.5″ 8-NPSM | – | Standard | 890 | 870 | 210 | 25 | 6.6 | |
| 8 x 44 | 2.5″ 8-NPSM | – | Standard | 1125 | 1105 | 210 | 33 | 8.7 | |
| 9 x 35 | 2.5″ 8-NPSM | – | Standard | 890 | 870 | 232 | 31.5 | 8.3 | |
| 9 x 42 | 2.5″ 8-NPSM | – | Standard | 1075 | 1055 | 232 | 38.4 | 10.1 | |
| 9 x 48 | 2.5″ 8-NPSM | – | Standard | 1230 | 1210 | 232 | 44.4 | 11.7 | |
| 10 x 18 | 2.5″ 8-NPSM | – | Standard | 480 | 460 | 256 | 18.6 | 4.9 | |
| 10 x 35 | 2.5″ 8-NPSM | – | Standard | 904 | 884 | 256 | 38.6 | 10.2 | |
| 10 x 44 | 2.5″ 8-NPSM | – | Standard | 1135 | 1115 | 256 | 50 | 13.2 | |
| 10 x 54 | 2.5″ 8-NPSM | – | Standard | 1400 | 1385 | 256 | 61 | 16.1 | |
| 12 x 48 | 2.5″ 8-NPSM | – | Standard | 1235 | 1215 | 304 | 76 | 20.1 | |
| 12 x 52 | 2.5″ 8-NPSM | – | Standard | 1350 | 1330 | 304 | 85 | 22.5 | |
| 13 x 54 | 2.5″ 8-NPSM | – | Standard | 1374 | 1360 | 333 | 102 | 26.9 | |
| 14 x 65 | 4″ 8-UN | – | Standard | 1653 | 1640 | 366 | 147 | 38.8 | |
| 14 x 65 | 4″ 8-UN | 4″ 8-UN | Tripod | 1890 | 1640 | 366 | 147 | 38.8 | |
| 16 x 65 | 4″ 8-UN | – | Standard | 1653 | 1640 | 410 | 184 | 48.6 | |
| 16 x 65 | 4″ 8-UN | 4″ 8-UN | Tripod | 1890 | 1640 | 410 | 184 | 48.6 | |
| 18 x 65 | 4″ 8-UN | – | Standard | 1680 | 1660 | 470 | 251 | 66.3 | |
| 18 x 65 | 4″ 8-UN | 4″ 8-UN | Tripod | 1900 | 1650 | 470 | 251 | 66.3 | |
| 21 x 62 | 4″ 8-UN | 4″ 8-UN | Tripod | 1854 | 1604 | 550 | 333 | 88.0 | |
| 24 x 72 | 4″ 8-UN | 4″ 8-UN | Tripod | 2057 | 1807 | 620 | 480 | 126.8 | |
| 30 x 72 | 4″ 8-UN | 4″ 8-UN | Tripod | 2057 | 1807 | 775 | 710 | 187.6 | |
| 36 x 72 | 4″ 8-UN | 4″ 8-UN | Tripod | 2057 | 1807 | 925 | 1071 | 283.0 | |
| 42 x 72 | 6″ FLG | 6″ FLG | Tripod | 2300 | 2050 | 1067 | 1461 | 386.0 | |
| 48 x 72 | 6″ FLG | 6″ FLG | Tripod | 2250 | 2000 | 1215 | 1890 | 499.3 | |
| 42 x 72 | 6″ FLG | 6″ FLG | FRP | Tripod | 2390 | 1930 | 1083 | 1268 | 386.0 |
| 48 x 72 | 6″ FLG | 6″ FLG | Tripod | 2390 | 1930 | 1233 | 1636 | 499.3 | |
| 64 x 72 | 6″ FLG | 6″ FLG | Tripod | 2450 | 1930 | 1637 | 3790 | 1001 | |
Adavance Engineering
- 8″ to 21″ PE Liners are made from CNC controlled blow moulding machine.
- 24″ to 36″ PE liner of industrial tank is made from CNC controlled rotational moulding machine.
- Inlet inserts are from CNC controlled injection moulding machine.
- FRP outer shells are made from CNC controlled mul-axis filament winding machine.
Manufacturing Processes
- Quality assurance check in place for all pressure vessel products.
- STROMEN pressure vessels are subjected to hydro test before leaving the factory.
- Random selected products are subjected to fague – and burst tests to verify design param
Warranty
- All STROMEN vessels are guaranteed against any manufacturing defect for 1 year.
KEY BENEFITS
- Excellent Insulating Property
- High Strength-to-weight Ratio
- Design and Manufacturing Flexibility
- Corrosion Resistance
- Durability and Longevity
- Long service life
- With and without handholes options available
INSTALLATION TIPS
- Bolt base to floor
- Calculate height for valve and base combined

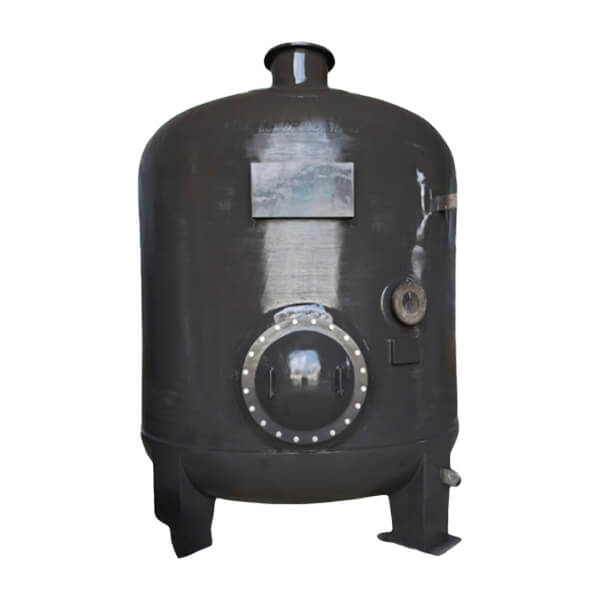

STROMEN specializes in large-diameter, export-quality FRP pressure vessels for demanding, high-volume industrial applications like water treatment and chemical storage. Our vessels, built using precision filament winding, are a superior, cost-effective alternative to steel, offering unmatched corrosion resistance and exceptional strength for critical fluid management.

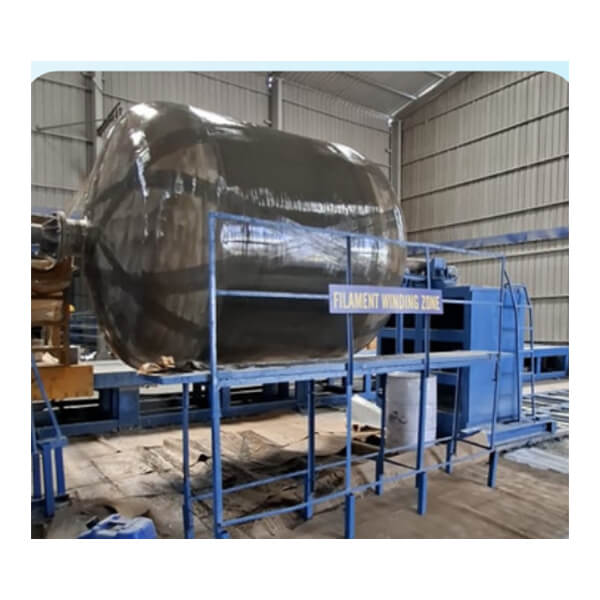

STROMEN Large Diameter vessels are manufactured via filament winding, starting with the application of a corrosion-resistant inner liner. Resin-saturated fiberglass is precisely wound onto this liner in controlled Hoop and Helical layers for optimal strength. The structure is then cured and fitted with accessories like hand holes and nozzles. The final product undergoes rigorous hydro testing to certify export quality and unmatched performance.
STROMEN YOUR FINAL CHOICE
- Proven products of high quality with relevant observation.
- High assured standards.
- Trusted performance.
- On time delivery.
- Responsive after sales.
STROMEN membrane housings are a well-known range of RO (Reverse Osmosis) pressure tubes marketed by FIPL. They are widely used in industrial, commercial, and municipal water treatment plants.
STROMEN Membrane housings are FRP (epoxy/glass composite) pressure vessels designed to hold RO membranes under high pressure for water purification systems.
They are built for:
- Industrial RO plants
- Commercial water treatment systems
- Desalination & high-flow filtration
STROMEN MEMBRANE HOUSING models & sizes
8” STROMEN Series
- Diameter: 8 inch
- Pressure: 300 PSI / 450 PSI/600 PSI/1000 PSI
- End port /Side- port both options
- 1–8 elements variants
4” STROMEN series
- Diameter: 4 inch
- Pressure: 300 PSI
- End-entry design
- Compact industrial/commercial systems
Key Features
- FRP (epoxy/glass composite) construction → corrosion resistant & long life
- Quick Lock system → tool-free membrane access
- High chemical resistance thermoplastic heads
- Leak-proof OCTA sealing design (in 8” models)
- UV-resistant coating for outdoor use
- Compatible with standard RO membranes (2.5”, 4”, 8”)
Advantages
- High pressure handling (up to 1200 PSI in standard range)
- Lightweight compared to steel housings
- Easy maintenance & servicing
- Long operational life in harsh environments

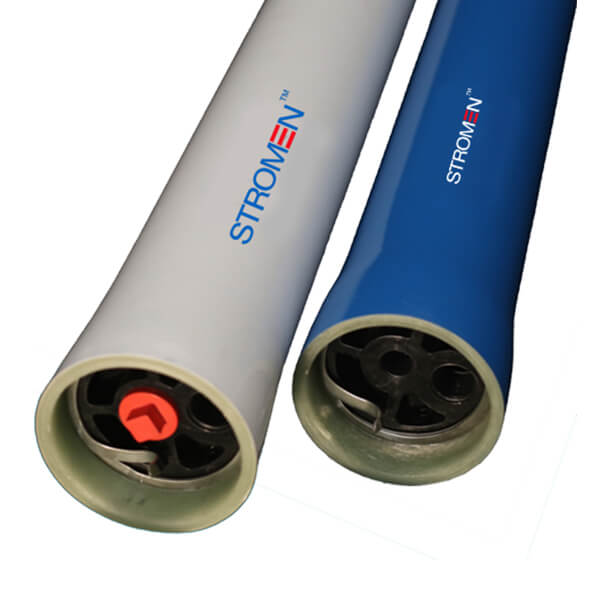

STROMEN FRP reverse osmosis membrane housings are manufactured by four axis CNC Filament winding Machine and associated high precision processing equipments, with a team of skilled technical experts in the field of computer controlled machines and with all the state – of – art processing machine.
The housings are made of superior resin that provides the ultimate glassy finish inside it. Carefully selected optimal grade raw materials provide strength, reliability, guarantee and unparalleled performance.
STROMEN Membrane Housing is produced with 2.5″ dia up to 2 elements, 4″ dia up to 6 elements and 8″ dia up to 7 elements with pressure rating from 3OOPSI to 1200 PSI. END PORT /SIDE PORT both options available.
STROMEN membrane Housing’s each unit is tested in the factory at 1.5 times of its actual working pressure making it suitable to international standards of membranes. Life cycle test is also conducted on every batch of production for efficiency and longevity.
STROMEN 4 INCH END PORT MEMBRANE HOUSING
STROMEN 4 inch membrane housings are used for commercial and industrial RO applications. They are made of epoxy /glass composite for long and continuous use in any RO applications.
They can accommodate any standard 4 inch element.

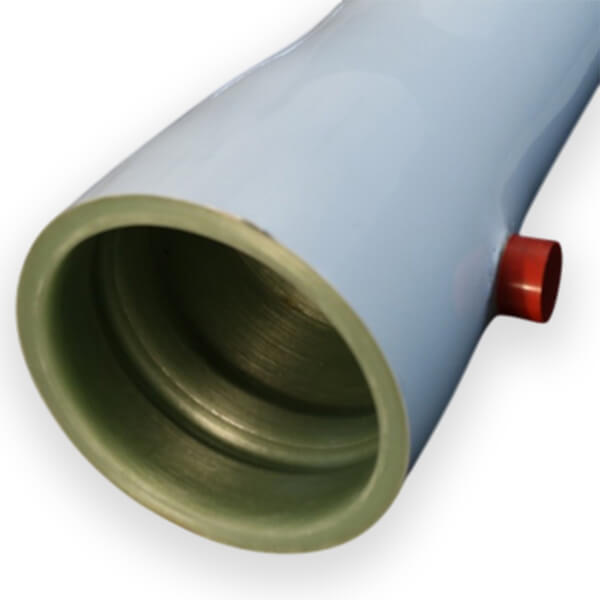

STROMEN 8 INCH MEMBRANE HOUSING -R,Q,H series
Stromen 8 INCH MEMBRANE HOUSINGS ARE AVAILBLE IN 3 VARIANTS – R series, Q series and H series, to cater any particular requirement.
STROMEN – R series 8 inch membrane housings
- Used for commercial,municipal and industrial RO applications.
- The most economic variant.
- R series membrane housing models are available upto a maximum operating pressure of 300 PSI.
- R series membrane housings are available for upto 6
- It comes with SINGLE PIECE Head assembly
- Only END PORT option is available in this series.
- These housings are made up of epoxy/glass composite to meet the demands of long term and continuous use in RO processes.
- STROMEN membrane housings can accommodate any standard 8” membrane Element.

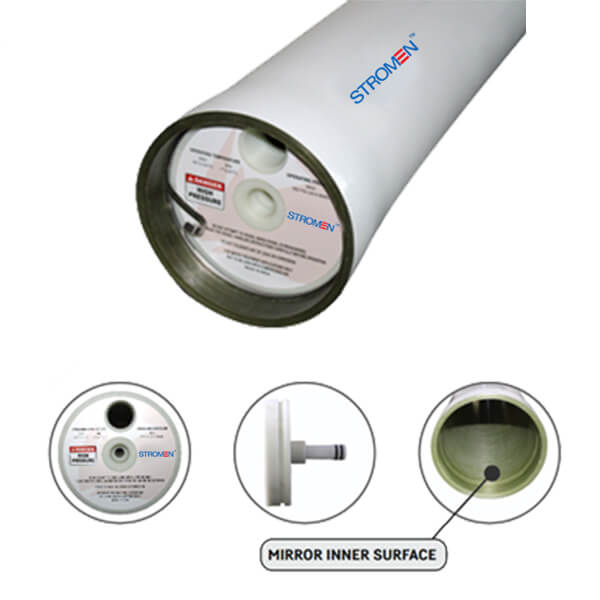

STROMEN - R series 8 inch membrane housings

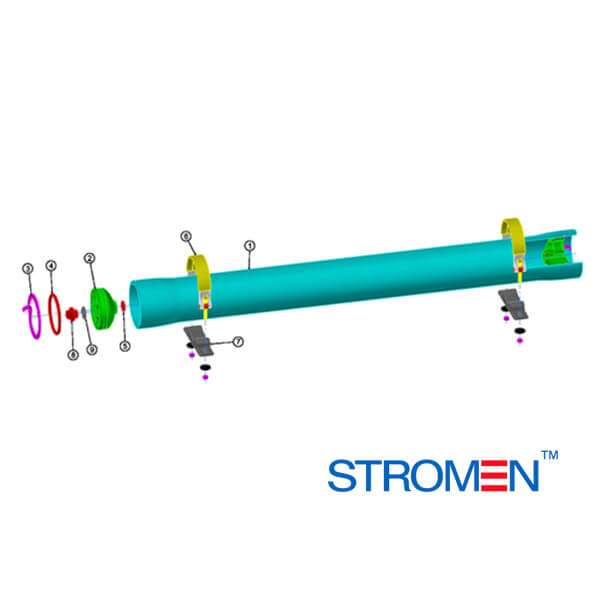

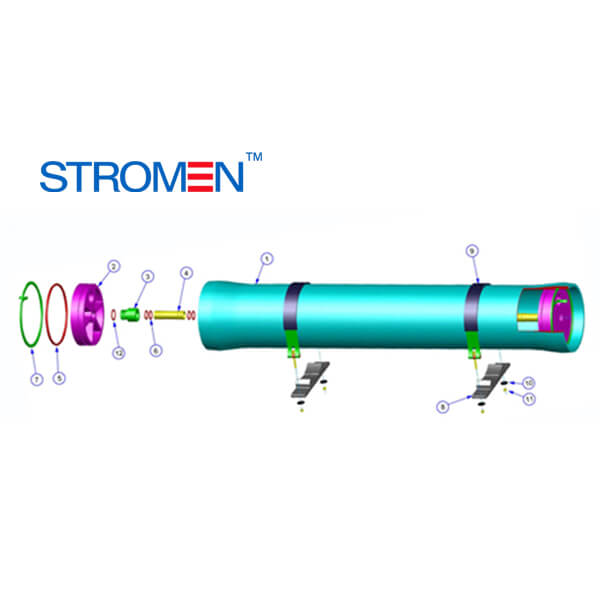

STROMEN 8 INCH R SERIES MEMBRANE HOUSING EXPLODED VIEW
EXPLODED VIEW
| SR.NO. | PART NAME | QTY. |
|---|---|---|
| 1 | HOUSING | 1 |
| 2 | END CAP | 2 |
| 3 | PERMEATE PORT | 2 |
| 4 | CONNECTOR | 2 |
| 5 | END CAP O RING | 2 |
| 6 | CONNECTOR O RING | 8 |
| 7 | RETAINING RING | 2 |
| 8 | SADDLE | 2 |
| 9 | STRAP | 2 |
| 10 | WASHER | 4 |
| 11 | NUT | 4 |
| 12 | PERMEATE PORT O RING | 2 |
Technical Specification
| MEMBRANE HOUSING MODEL NO | MAX OPERATING PRESSURE | MAX OPERATING TEMPERATURE | QUALITY CONTROL TEST PRESSURE | ELEMENT LENGTH |
|---|---|---|---|---|
| Q-80E-300 (ECONOMIC) | 300 PSI | 49°C (120°F) | 360 PSI | 1 – 6 |
STROMEN R SERIES – Material Of Consutruction
| SR. No. | PART NAME | QTY. | MATERIAL |
|---|---|---|---|
| 1 | MEMBRANE HOUSING | 1 | Filament Wound Epoxy/Glass Composites |
| 2 | ADAPTER | 2 | Engineering Thermoplastic |
| 3 | PERMEATE PORT | 2 | Engineering Thermoplastic |
| 4 | HEAD ASSEMBLY | 2 | Engineering Thermoplastic |
| 5 | HEAD ASSEMBLY O RING | 2 | Synthetic Nitrile / Ethylene Propylene |
| 6 | ADAPTER MEMBRANE O RING | 4 | Synthetic Nitrile / Ethylene Propylene |
| 7 | ADAPTER PERMEATE O RING | 4 | Synthetic Nitrile / Ethylene Propylene |
| 8 | PERMEATE SEALING O RING | 2 | Synthetic Nitrile / Ethylene Propylene |
| 9 | RETAINING RING | 2 | S.S. 304 |
| 10 | SADDLE | 2 | Engineering Thermoplastic |
| 11 | STRAP ASSEMBLY | 2 | S.S. 304 PVC Cushion |
Features & Benefits
- Mirror Finished ID for easy & quick loading & unloading membranes .
- External surface coated with high gloss polyurethane paint for UV resistance .
- Quick lock head retention system for quick access to membranes .
- More accurate Head Seal Area is formed by mandrel surface.
- Compact design for use in compact and low energy water treatment units.
- Head Seal is captured, hence doesn’t roll during head assembly fitment.

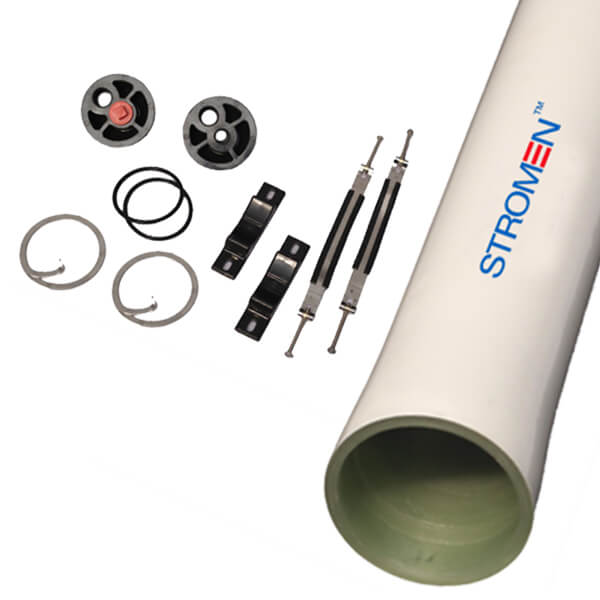

STROMEN-Q SERIES 8 inch RO MEMBRANE HOUSINGS
- STROMEN –Q series RO membrane housings are value for money SIDE PORT membrane housings series .
- Pressure rating 300 psi and 450 psi both options available in this series.
- These housings are made up of epoxy/glass composite to meet the demands of long term and continuous use in RO processes.
- Stromen Q series membrane housings are available for upto 7 elements
- It comes with single piece Head assembly and only SIDE PORT option is available in this series.

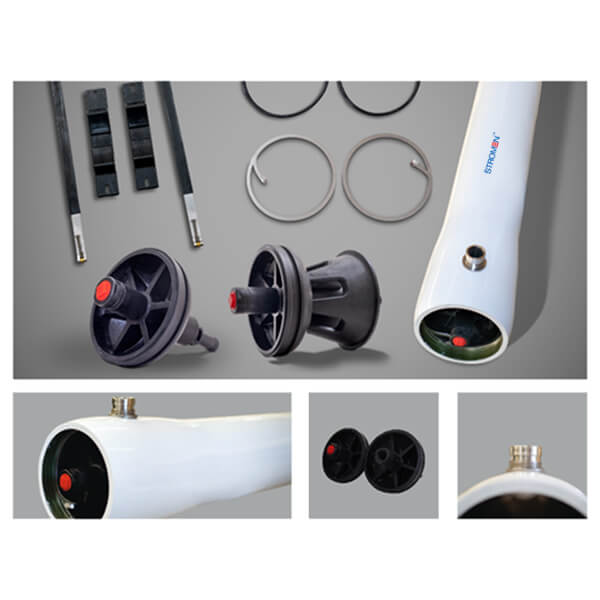

Q SERIES 8 inch RO MEMBRANE HOUSINGS
Q SERIES 8 inch RO MEMBRANE HOUSINGS

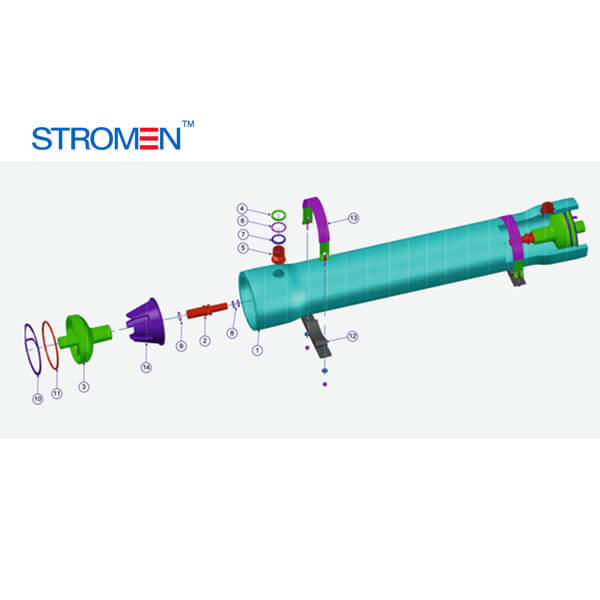

STROMEN Q SERIES MEMBRANE HOUSING EXPLODED VIEW
Q SERIES MEMBRANE HOUSING EXPLODED VIEW
| SR.NO | PART NAME | QTY. |
|---|---|---|
| 1 | MAMBRANE HOUSING | 1 |
| 2 | ADAPTER | 2 |
| 3 | HEAD ASSEMBLY | 2 |
| 4 | FC PORT CHUCK NUT | 2 |
| 5 | 1.5″ FC PORT | 2 |
| 6 | CHUCK NUT WASHER | 2 |
| 7 | FC PORT SEAL | 2 |
| 8 | ADAPTER MEMBRANE O RING | 4 |
| 9 | ADAPTER PERMEATE O RING | 2 |
| 10 | RETAINING RING | 2 |
| 11 | HEAD ASSEMBLY O RING | 2 |
| 12 | SADDLE | 2 |
| 13 | STARP ASSEMBLY | 2 |
| 14 | SPACER | 2 |
| MEMBRANE HOUSING MODEL NO. | MAX OPERATING PRESSURE | MAX OPERATING TEMPERATURE | QUALITY CONTROL TEST PRESSURE | BURST PRESSURE | ELEMENT LENGTH |
|---|---|---|---|---|---|
| Q-80S-300EC | 300 PSI (20 Bar) | 49°C (120°F) | 330 PSI (22.75 Bar) | 1200 PSI (82.75 Bar) | 1 – 7 |
| Q-80S-450EC | 450 PSI (31 Bar) | 49°C (120°F) | 495 PSI (34.12 Bar) | 1800 PSI (124.13 Bar) | 1 – 7 |
STROMEN Q SERIES : Material Of Construction
| SR. No. | PART NAME | QTY. | MATERIAL |
|---|---|---|---|
| 1 | MEMBRANE HOUSING | 1 | Filament Wound Epoxy/Glass Composite |
| 2 | ADAPTER | 2 | Engineering Thermoplastic |
| 3 | HEAD ASSEMBLY | 2 | Engineering Thermoplastic |
| 4 | FC PORT CHECK NUT | 2 | S.S. 304 |
| 5 | FC PORT | 2 | CF3M as per SA-351 |
| 6 | CHECK NUT WASHER | 2 | S.S. 304 |
| 7 | FC PORT SEAL | 2 | Ethylene Propylene / Synthetic Nitrile |
| 8 | ADAPTER MEMBRANE O RING | 4 | Ethylene Propylene / Synthetic Nitrile |
| 9 | ADAPTER PERMEATE O RING | 2 | Ethylene Propylene / Synthetic Nitrile |
| 10 | RETAINING RING | 2 | S.S. 316 as per SA-479 |
| 11 | HEAD ASSEMBLY O RING | 2 | Ethylene Propylene / Synthetic Nitrile |
| 12 | SADDLE | 2 | Engineering Thermoplastic |
| 13 | STRAP ASSEMBLY | 2 | S.S. 304 PVC Cushion |
| 14 | SPACER | 1 | Engineering Thermoplastic |
UNIQUE BENEFITS
- Minimized leakage:The integrated shape provides a flat surface for superior and reliable side port sealing
- Advanced end closure:Single-piece head, made of high-grade thermoplastic material, provides superior chemical resistance and eliminates permeate port sealing joints
- Easy service and maintenance: The threaded side ports are easy to mount and allow for quick & easy on-site maintenance and replacements
- Quick locking mechanism: The user-friendly Quick Lock System eliminates the need for special removal tools and allows quick access to the membranes
- Improved head sealing:Integration into the head/sealing plate provides better sealing and avoids head seal roll, eliminating head leaks
- Integrally wound locking groove: enhanced end-margin strength for better performance
STORMEN H SERIES MEMBRANE HOUSINGS
- STROMEN –H series RO membrane housings are HEAVY DUTY SIDE PORT/END PORT membrane housings series.
- ENDPORT /SIDE PORT both options available.
- 300 /450/600/1000/1200 psi – All options available
- These housings are made up of epoxy/glass composite to meet the demands of long term and continuous use in RO processes.
- It comes with heavy duty dual-piece Head assembly , which makes it suitable for any application .
- Known for Durability, Reliability and Performance
STORMEN H SERIES MEMBRANE HOUSINGS
STORMEN H SERIES MEMBRANE HOUSINGS

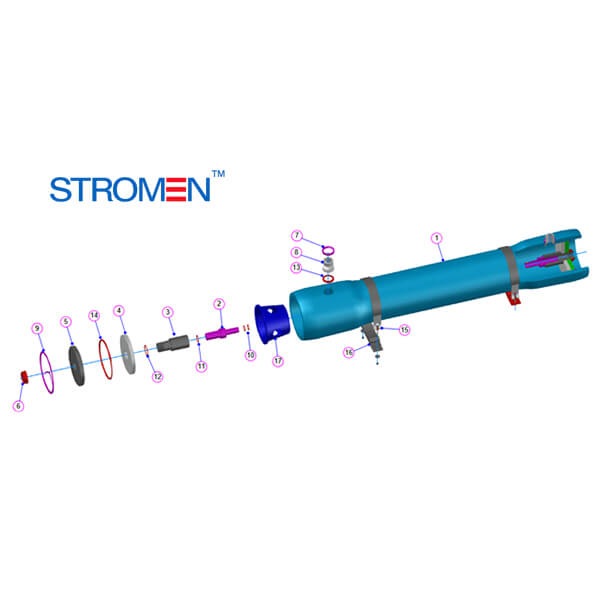

STROMEN H SERIES – END PORT EXPLODED VIEW
H SERIES – END PORT EXPLODED VIEW
| SR. No. | PART NAME | QTY. |
|---|---|---|
| 1 | MEMBRANE HOUSING | 1 |
| 2 | ADAPTER | 2 |
| 3 | PERMEATE PORT | 2 |
| 4 | HEAD ASSEMBLY | 2 |
| 5 | HEAD ASSEMBLY O RING | 2 |
| 6 | ADAPTER – MEMBRANE O RING | 2 |
| 7 | ADAPTER – PERMEATE O RING | 2 |
| 8 | PERMEATE O RING | 2 |
| 9 | RETAINING RING | 2 |
| 10 | SADDLE | 2 |
| 11 | STRAP ASSEMBLY | 2 |
STROMEN H SERIES SIDE PORT EXPLODED VIEW
H SERIES SIDE PORT EXPLODED VIEW
| SR. No. | PART NAME | QTY. |
|---|---|---|
| 1 | MEMBRANE HOUSING | 1 |
| 2 | ADAPTER | 2 |
| 3 | PERMEATE PORT | 2 |
| 4 | SEALING PLATE | 2 |
| 5 | BEARING PLATE | 2 |
| 6 | PORT NUT | 2 |
| 7 | FC PORT NUT | 2 |
| 8 | FC PORT | 2 |
| 9 | RETAINING RING | 2 |
| 10 | ADAPTER – MEMBRANE O RING | 4 |
| 11 | ADAPTER – PERMEATE O RING | 2 |
| 12 | PERMEATE – SEALING O RING | 2 |
| 13 | FC PORT SEAL | 2 |
| 14 | HEAD ASSEMBLY O RING | 2 |
| 15 | STRAP ASSEMBLY | 2 |
| 16 | SADDLE | 2 |
| 17 | SPACER / THRUST CONE | 1 |
STROMEN H SERIES – MATERAIL OF CONSTRUCTION
| SR. No. | PART NAME | QTY. | MATERIAL |
|---|---|---|---|
| 1 | MEMBRANE HOUSING | 1 | Filament Wound Epoxy/Glass Composites |
| 2 | ADAPTER | 2 | Engineering Thermoplastic |
| 3 | PERMEATE PORT | 2 | Engineering Thermoplastic |
| 4 | SEALING PLATE | 2 | Engineering Thermoplastic |
| 5 | BEARING PLATE | 2 | 6061-T6 as per SB-221 |
| 6 | PORT NUT | 2 | Engineering Thermoplastic |
| 7 | FC PORT LOCK NUT | 2 | S.S. 304 |
| 8 | FC PORT | 2 | CF3M as per SA-351 |
| 9 | RETAINING RING | 2 | S.S. 316 as per SA-479 |
| 10 | ADAPTER MEMBRANE O RING | 4 | Ethylene Propylene / Synthetic Nitrile |
| 11 | ADAPTER PERMEATE O RING | 2 | Ethylene Propylene / Synthetic Nitrile |
| 12 | PERMEATE SEALING O RING | 2 | Ethylene Propylene / Synthetic Nitrile |
| 13 | FC PORT SEAL | 2 | Ethylene Propylene / Synthetic Nitrile |
| 14 | HEAD ASSEMBLY O RING | 2 | Ethylene Propylene / Synthetic Nitrile |
| 15 | STRAP ASSEMBLY | 2 | S.S. 304 – PVC Cushion |
| 16 | SADDLE | 2 | Engineering Thermoplastic |
| 17 | SPACER / THRUST CONE | 1 | Engineering Thermoplastic |
| 18 | FC PORT WASHER | 2 | S.S. 316 |
UNIQUE BENEFITS
- Compact design: for use in compact and low-energy water treatment units
- Membrane housings are with dual-piece end plug made from superior quality thermoplastic material and metal bearing plate
- Higher pressure rated model for seawater applications accommodates a maximum of seven membrane elements.
- Improved head sealing: Integrated groove in the end plug /sealing plate provides better sealing and avoids head seal roll
