pH is the measure of the hydrogen ion concentration in a liquid. pH measures the acidity or alkalinity of a liquid. The pH scale is logarithmic and runs from 0.0 to 14.0 with 7.0 being neutral. Readings less than 7.0 indicates acidic solutions, while higher readings indicate alkaline or base solution.

Our pH controller has been designed for easy, affordable installation in tight spaces to perform simple yet effective process control. Thanks to its compact size, the PO-650 controller can be installed on field or Panel. This versatile controller is ideal for a wide variety of applications, such as textiles, papers, photographic solutions, plating baths, chemicals and water treatment. The PO 650-pH is provided with a selectable set point for acid or alkali dosage. Measurements are directly taken from a pH electrode in the range from 0 to 14 with a 0.01 pH resolution. Accuracy is ensured by two point calibration.

Key features

• Easy Settings Using Front Keys
• Unique Weatherproof Enclosure – IP65
• On Line Measurement
• Suitable for Field as well as Panel mounting application
• Automatic / Manual Options for Relay
• Traceable to National   Standards
• Individual Set Point Based Relay Operation
• Programmable Control Delay
• Alarm Acknowledgement Facility
• Hysteresis to Prevent Relay Chattering
• ATC Control (optional)
• Isolated 4-20mA Output Optionally Available for Other Applications
• Communication Ready for Monitoring and Data Logging (Optional)
• Inbuilt Diagnostics for Wrong Calibration or Sensor Error

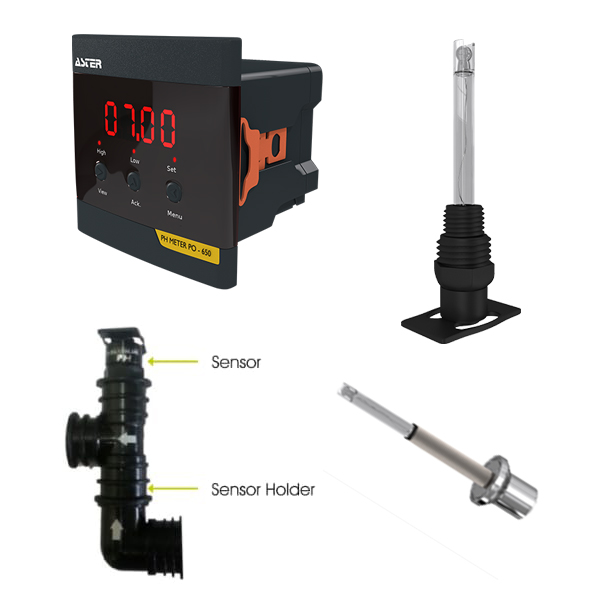

Specifications ( PO 650 METER)

• Physical dimensions : 105 x 105 x 130mm
• Cut-out size : 90 x 90 mm
• Enclosure : ABS weather proof IP-65
• Mounting : Field/ Pipe/ Panel
• Input supply : 230 V A.C./110 V A.C./ 24 V D.C
• Alarm : Separate LED indication for high & low
• Control Operation : Alarm/ auto reset/ control
• Accuracy : ± 2% FSD
• Display : 4 digit 7 segment LED display
• Calibration / set point : Using front keypad
• Output : 4-20mA (optional), RS 485 (optional)
• Relay : Individual high & low relay 5A@ 230V (programmable through entire range with set-able control delay & hyteresis)

Specifications ( PO 650 SENSOR)

• Overall Dimensions : 140mm (L) x 32mm (W)
• Type : Flow Through/Tank (optional)
• Sensor Output : Milli Volt
• Electrode Material: Glass bulb with epoxy body*
• Process Connection : 20 NB/ 15 NB M
• Cable : 1 Core Shielded 5 meter
• Cable Termination : 0.75mm² lugs
• Max. Temperature : 0-60°C, 0-100°C (with ATC optional)
• Max. Pressure : 5 Kg/Cm ²
• Installation : In vertical line
• Sensor Holder : MOC: ABS/Norryl with 20 NB, BSPF end connections, *Glass body for ATC Application

Applications

• Boilers
• Bottling
• Cooling Towers
• Pharma & Chemical
• Pulp & Paper Industry
• Water Treatment

pH is a measure of the hydrogen ion concentration in a liquid and indicates its acidity or alkalinity.
The pH scale is logarithmic, ranging from 0 to 14, where a pH value of 7 is considered neutral.

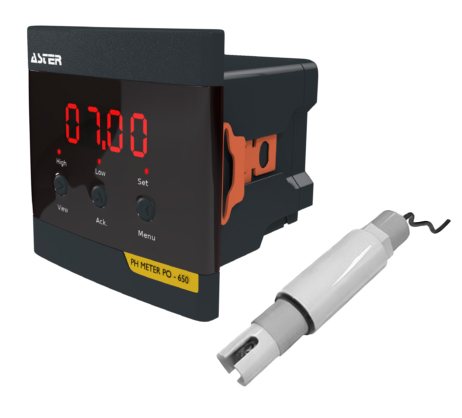

pH ETP meters are specially designed for measuring pH levels in wastewater treatment applications. These meters are equipped with rugged sensors and a wide measurement range, making them suitable for harsh wastewater environments and ensuring reliable performance in industrial conditions.

Key Features

• TRACEABILITY to National Standards
• PUSH BUTTON FRONT KEYS for easy set up
• INDIVIDUAL HIGH & LOW SET POINT RELAY for alarm or signal to PLC or can be used for proportional acid/alkali dosing
• PROGRAMMABLE CONTROL DELAY TIME & HYSTERISIS TO PREVENT RELAY CHATTERING
• IN-BUILT DIAGNOSTICS for wrong calibration or sensor error
• IN-BUILT ALARM ANNUNCIATOR It’s a facility to acknowledge high/low fault condition and reset relays by pressing the acknowledge key
• MANUAL/AUTOMATIC relay reset options
• ECONOMICAL option for imported pH sensor
• SUITABLE FOR ALL TYPES OF EFFLUENTS
• SPECIALLY DESIGNED ENCLOSURE ensure least maintenance
• EASY TO CLEAN SENSOR
• UNIVERSAL ENCLOSURE FOR SENSOR suitable for online as well as tank application

pH Meter Specifications

•  Physical dimensions : 105 x 105 x 130mm
• Cut-out size : 90 x 90mm
• Enclosure : ABS weather proof IP- 65
• Mounting : Field/ Pipe/ Panel
• Input supply : 230 V A.C./110 V A.C./ 24 V D.C.
• Alarms : Separate LED indication for high & low
• Control operation : Alarm/ auto reset/ control
• Accuracy : ± 2% FSD
• Calibration/set point : Using front keypad
• Display : 4 digit 7 segment LED display
• Output : 4-20mA (optional) RS 485 (optional)
• Relay : Individual high & low relay 5A@ 230V (programmable through entire range with set-able control delay & hyteresis)

pH Sensor Specifications

• Overall Dimensions : 133mm (L) x 32mm (W)
• Type : Tank mounting
• Sensor Output : Milli Volt
• Electrode Material: Glass
• Process Connection : 20 NB M
• Cable : 1 Core Shielded 5 meter
• Cable Termination : 0.75mm² lugs
• Max. Temperature : 0-60°C, 0-100°C (with ATC optional)
• Max. Pressure : 5 Kg/Cm ²
• Orientation : Vertical

Conductivity is indeed a direct measure of ionic concentration. If water is pure, its conductivity will be relatively low. However, the presence of salts, minerals, and even dissolved gases can uniformly increase a solution’s conductivity. As a result, conductivity can be a helpful indicator of the quantity of dissolved materials in a solution.

Features

• TRACEABILITY to National standards
• AUTO-RANGING FACILITY One single meter is suitable for a certain range of conductivity. Automatic shift in resolution based on conductivity value.
• UNIQUE ENCLOSURE DESIGN suitable for field as well as panel mount applications
• DUAL UNIT same meter displays µs/Cm (micro seimen/Centimeter) and ppm (part per million)
• EASY CALIBRATIONS using front keys
• PASSWORD PROTECTION for major settings
• WIDE RANGE availability from high purity 0.05 µs/cm to high salinity upto 200 milli seimen
• IN BUILT ALARM annunciator
• RELAY OUTPUT FOR ALARM OR SIGNAL TO PLC
• PROGRAMMABLE CONTROL DELAY TIME
• HYSTERISIS TO PREVENT RELAY CHATTERING
• AUTOMATIC TEMPERATURE COMPENSATION Conductivity has substantial dependence on temperature. An inbuilt temperature sensor ensures that the displayed conductivity value is compensated
• RS 485 OUTPUT for online monitoring/data logging
• ISOLATED 4-20 mA OUTPUT with normal/inverse function and inbuilt current simulator

To cater to all kinds of budgets and application requirements, we provide a vast range of online conductivity meters. To know more about the product and its specifications, please select the appropriate one.

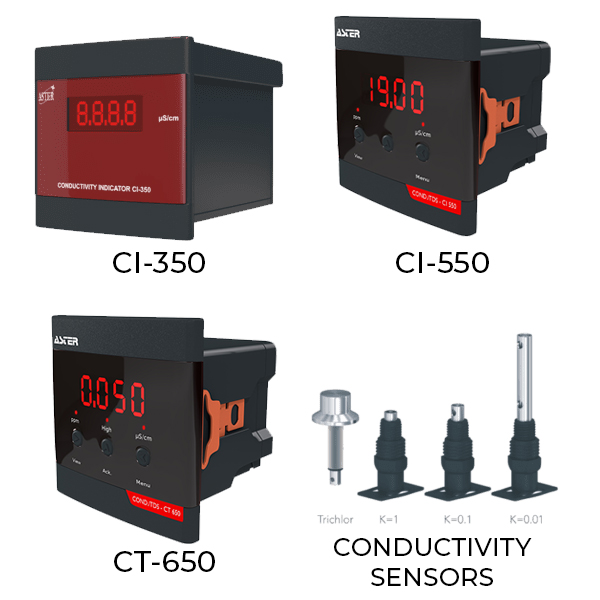

Models

Conductivity Meter (CI 350)

Introducing our advanced Conductivity Meter for Water, featuring a weather- proof IP 65 enclosure for versatile applications. Traceable to national standards, it offers automatic range selection for different water qualities.

SPECIFICATIONS

• Physical Dimensions : 75 x 75 x 90mm
• Cut-out size : 68 x 68mm
• Enclosure : ABS weather proof
• Mounting : Panel
• Input Supply : 230 V A.C.
• Accuracy : ±2%
• Resolution : 0.01/0.1/1 depending on range
• Display : 4 digit LED display
• Calibration : Using trim pots
• Ranges (µs/cm or ppm) : 0 to 1000 µs/cm OR 0 to 500 ppm
• Temperature : 0-60°C

AVAILABLE RANGES

• 0—40 μs/cm
• 0—1000 μs/cm
• 0—500 ppm

Conductivity Meter (CI-550)

Introducing our advanced Conductivity Meter for Water, featuring a weather- proof IP 65 enclosure for versatile applications. Traceable to national standards, it offers automatic range selection from high purity to high salinity, stable linear response, easy calibration, password-protected settings, and automatic temperature compensation. The rugged sensor housing ensures durability and precision. Experience accurate and reliable water quality measurements with ease.

KEY FEATURES

• Mains Operated Conductivity / TDS indicator
• Ideal for Outdoor as well as Panel Mount

AVAILBLE RANGES

• 0—199.9 μs/cm
• 0—1999 μs/cm

SPECIFICATIONS

• Physical Dimensions : 105 x 105 x 130mm
• Cut-out size : 90 x 90mm
• Enclosure : ABS weather proof IP-65
• Mounting : Field / Pipe / Panel
• Input Supply : 230 V A.C.
• Accuracy : ±2% FSD
• Resolution : 0.001/0.01/0.1/1 depending upon range
• Display : 4 digit LED display
• Calibration : Using front keys
• Measuring Range : 0.5-9999
• Display Mode : Dual µs/cm or ppm
• Output : 4-20 mA (optional)

Conductivity Controller (CT-650)

Introducing our advanced Conductivity Meter for Water, featuring a weather- proof IP 65 enclosure for versatile applications. Traceable to national standards, it offers automatic range selection from high purity to high salinity, stable linear response, easy calibration, password-protected settings, and automatic temperature compensation. The rugged sensor housing ensures durability and precision. Experience accurate and reliable water quality measurements with added automation and IOT based data logging.

KEY FEATURES

• Ideal for Outdoor as well as Panel Mount
• Conductivity / TDS Meter with Inbuilt Relay and ‘ALARM’ Output with Acknowledge Facility
• Programmable Hysteresis Avoids Unnecessary Chattering of Pump
• Programmable Control Delay Time
• Communication Ready for Monitoring / Data Logging with RS485 (optionally available)
• Automatic Temperature Compensation (optionally available)
• 4-20 mA Output for Panel Indication / PLC (optionally available)

SPECIFICATIONS

• Physical Dimensions : 105 x 105 x 130mm
• Cut-out size : 90 x 90mm
• Enclosure : ABS weather proof IP-65
• Mounting : Field / Pipe / Panel
• Input Supply : 230 V A.C./ 110 V A.C./ 24 V D.C
• Alarms : In built buzzer with blinking LED for high conductivity indication
• Relay : 1 no for high (programmable through entire range with control delay & hysteresis) 5 A @ 230 V A.C
• Control operation : Alarm/auto reset
• Accuracy : ±2% FSD
• Resolution : 0.001/0.01/0.1/1 depending upon range
• Display :4 digit LED display
• Calibration/set point : Using front keys
• Measuring Range : 0-9999 (other ranges optional)
• Display Mode : Dual μs/cm or ppm
• Output (optional) : 4-20 mA / RS 485

AVAILBALE RANGES

• 0 —19.99 μs/cm or ppm
• 0 —199.9 μs/cm or ppm
• 0 —1999 μs/cm or ppm
• 0—9999 μs/cm or ppm
• 0-5.000 μs/cm or ppm

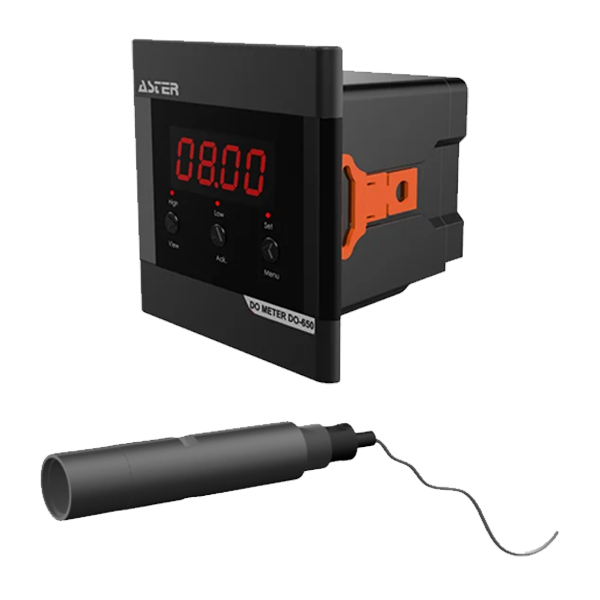

Dissolved oxygen refers to the level of free, non-compound oxygen present in water or other liquids. It is an important parameter in assessing water quality because of its influence on the organisms living within a body of water.

Key Attributes

• PUSH BUTTON FRONT KEYS for easy set up
• INDIVIDUAL HIGH & LOW SET POINT RELAY for alarm or signal to PLC or can be used for proportional dosing
• PROGRAMMABLE CONTROL DELAY TIME & HYSTERISIS TO PREVENT RELAY CHATTERING
• IN-BUILT ALARM ANNUNCIATOR It’s a facility to acknowledge high/low fault condition and reset relays by pressing the acknowledge key
• MANUAL/AUTOMATIC relay reset options
• RS 485 for online monitoring/ data logging
• ISOLATED 4-20 mA OUTPUT with normal/inverse function and in-built current simulator

SPECIFICATIONS (METER)

• Physical Dimensions : 105 x 105 x 130mm
• Cut-out Size : 90 x 90mm
• Enclosure : ABS weather proof IP- 65
• Display : 4 digit 7 segment LED display
• Mounting : Field/ Panel / Pipe
• Input Supply : 230 V A.C./110 V A.C./ 24 V D.C.
• Alarms : Separate LED indication for high & low
• Control Operation : Alarm/ auto reset/ control
• Accuracy : ± 2% FSD
• Calibration/set point : Using front keypad
• Outputs :
  • 4-20mA (optional)
  • RS 485 (optional)
• Relay : Individual high & low relay 5A@ 230V (programmable through entire range with set-able control delay & hyteresis)

SPECIFICATIONS ( SENSOR)

• Overall Dimensions : 12mm x 120mm
• Type : Flow Through
• Sensor Output : Milli Volt
• Electrode Material :Galvanic
• Process Connection : 20 NB BSP M
• Cable :5 meter low noise shielded cable
• Max. Temperature : 0-60°C
• Max. Operating Pressure : Ambient
• Installation : Online / Tank

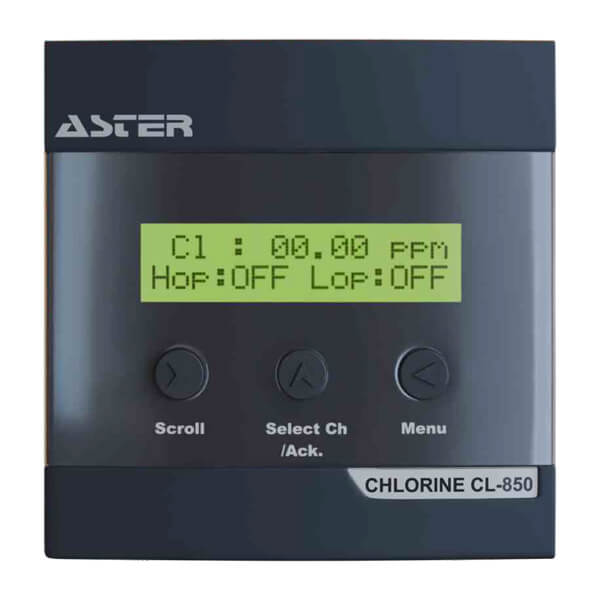

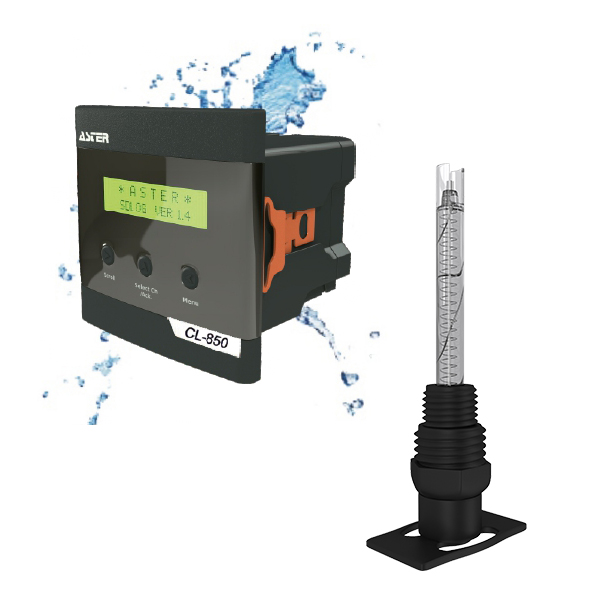

Chlorine is highly efficient disinfectant and it is added to water to kill disease causing bacteria, viruses etc. However over dosing of chlorine can be harmful. For optimal dosing it is essential to monitor the chlorine levels. This can be achieved by deriving the cl2 value using complex algorithm and measurement of the oxidation potential* of water.

KEY ATTRIBUTES

• PUSH BUTTON FRONT KEYS for easy set up
• INDIVIDUAL HIGH & LOW SET POINT RELAY for alarm or signal to PLC or can be used for proportional Hypo/SMBS dosing
• PROGRAMMABLE CONTROL DELAY TIME & HYSTERISIS TO PREVENT RELAY CHATTERING
• IN-BUILT ALARM ANNUNCIATOR It’s a facility to acknowledge high/low fault condition and reset relays by pressing the acknowledge key
• MANUAL/AUTOMATIC relay reset options

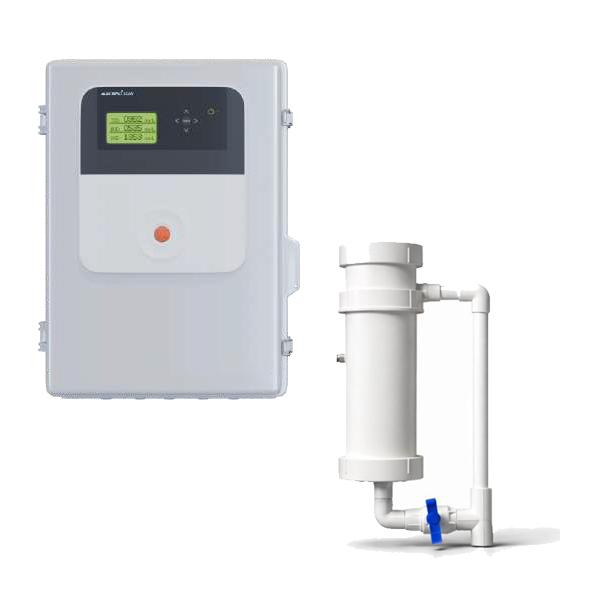

BOD is the measurement of the amount of dissolved oxygen that is used by aerobic micro-organisms to decompose the organic matter in water. A typical healthy river will have 100% saturation of oxygen (8-10mg/l), hence lots of oxygen for micro-organisms to consume organic matter.
COD is defined as the amount of dissolved oxygen to oxidize and stabilize a sample when organic or inorganic matter of sample solution is responsive by a strong chemical oxidant. The COD value indicates the mass of oxygen consumed per liter of solution and expressed in milligrams per liter (mg/L).
BOD & COD are very important water quality parameter within the wastewater industry.

Key Attributes

• DUST & VERMIN PROOF ENCLOSURE
• PATENTED TECHNOLOGY for derivation of parameter
• EASY Access to critical settings
• INTUITIVE USER INTERFACE
• 4 LINE DISPLAY for multiple parameter viewing
• PROVISION TO CONNECT ALARM
• READY FOR DATA ACQUISITION OF EXISTING ETP/STP
• PLUG & PLAY COMES WITH SS HOLDER

SINGLE UNIT FOR MEASURING MULTIPLE PARAMETER LIKE

• BOD (Range: 0 to 100ppm)
• COD (Range: 0 to 150 ppm)
• TSS ( Range: 0 to 100 ppm)
• TDS (Range: 100 to 9999 ppm)
• Range: pH ( 0 to 14)
• TURBIDITY (0 to 1000 NTU)
• CHLORIN (0 to 4 PPM)

OPTIONS TO CONNECT

• DO METER WITH RS485 OUTPUT
• ELECTROMAGNETIC FLOW METER WITH RS485 OUTPUT for data logging

SPECIFICATIONS

• Overall Size : 300(H) x 400(V) x 150(D
• Enclosure : ABS weatherproof IP 65
• Display : 20 X 4 Graphic display
• Mounting : Wall/Panel Mount
• Supply : 24 V D.C
• Input :
  • 6 SWITCH INPUTS
  • 2 FEEDBACKS FROM TRANSFER PUMP
  • 2 FEEDBACKS FROM BLOWER
  • 2 FEEDBACKS FROM FILTER FEED PUMP
  • 2 FLOW INPUTS(PULSE)
• Outputs :
  • SAMPLING VALVE(POTENTIAL FREE C, NO)
  • ALARM (POTENTIAL FREE C, NO)
• Inbuilt Sensors for :
  • – TDS
  • – TSS
  • – BOD
  • – COD
  • – pH
  • – chlorine

*All Dimensions are in mm
H- Horizontal | V- Vertical

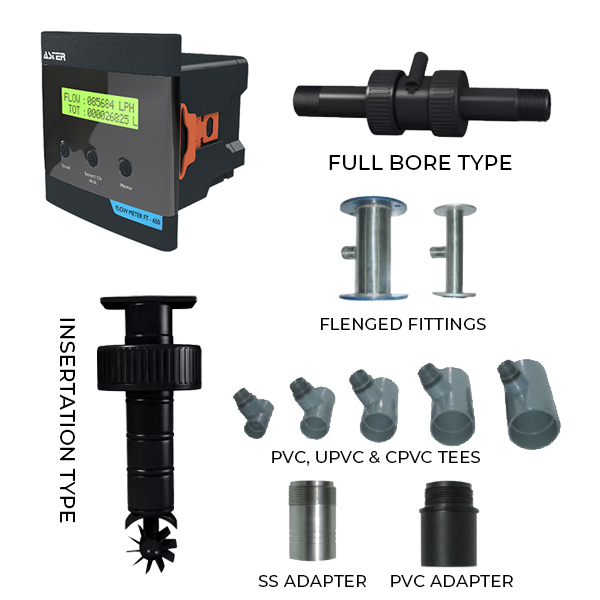

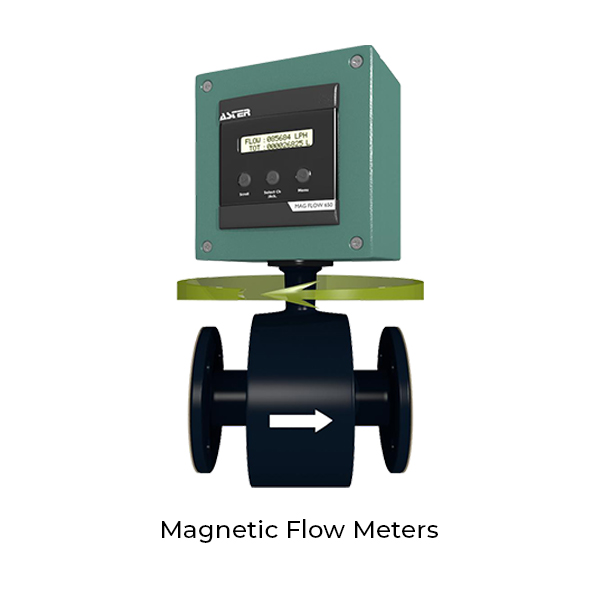

Our digital flow meter necessarily has a flow sensor with a magnetic multi-bladed spinning rotor (impeller) mounted inside at right angles to the flow. The rotational speed of the impeller is proportional to the velocity of fluid. The pulse generated is transmitted and converted into a volumetric measurement. Our digital flow meters are individually calibrated to give reliable flow measurement.

FEATURES

• Digital Flow Meter Measuring Flow Rate from 0.05 m³/hr to 500 m³/hr
• Dual Sensor, Dual Line, Single Meter
• Optional computer interface with Rs. 485 or 4-20 mA output options

Batcher And Totalizer

Relay gets energized after a fixed quantity of water passes through the sensor. The batcher has an auto reset, manual reset & dual relay operation facility. Batch quantity counts downwards till zero value.

Flow Compariator

The meter is supplied with two sensors for RO permeate and reject line. The meter displays both the flow rates and calculates percentage recovery.

Rate Switch Mode

The relay is programmed to get energized whenever actual flow falls below the set value. Display shows “LOW FLOW RATE”. Ideal for flow interlock, chemical dosing.

Pulse

Meter can be configured to any metering /dosing pump. Chemical dosing can be done on-line proportional to flow.

Optional Data Logger

The flow meter is available with a data logger option where flow rate & total flow with date and time is stored in a 2GB Memory card.

FLOW SENSOR

Different  types of sensors available from 10NB to 300NB line size with a wide range of process connection as well as material of construction.

• FULL BORE TYPE  – 20NB , 25NB & 50NB
• INSERTATION TYPE –  40NB to 300NB

FEATURES

• Inexpensive and accurate
• All Plastic wetted parts
• Easy to install and maintain
• Threaded housing allows field maintenance
• Each fitting is individually calibrated with fitting for K factor (ml/pulse)
• High amplitude output signal from sensor eliminates needs of retransmission upto 100 meter
• Ceramic bearing for superior low flow performance
• Insertion type sensor also available with solvent cementable adopters
• Sensor can be used directly with PLC or Data logger

TECHNICAL SPECIFICATIONS (FULL BORE / INSERTATION TYPE)

• Sensor Body : Noryl
• Impeller  : PP
• Shaft : Carbide
• Bearing : Ceramic
• Sensing Element : Hall effect I.C.
• Maximum Pressure  : 5 kg/cm²
• Maximum Temperature : 60°C
• Accuracy : ± 2% of Full Scale

AVAILABLE RANGES (FULL  BORE TYPE)

AVAILABLE RANGES (INSERTATION TYPE)

FLOW METER FITTING

• Manufactured in the various dimensions of the matching pipes with extremely durable flange ends is incomparable in quality as well as functionality.
• Flanges drilled as per BSTD standard optional drilling ANSI.

PVC ADAPTER

• Solvent cementable / Weldon connections for DIN/ASTM Tees

STEEL ADAPTER

• See the notch that should fix into the internal notch provided with Sensor Black Body.
• Insertion depth should be 10% of pipe diameter. Align the notch parallel to the flow direction and wield it properly

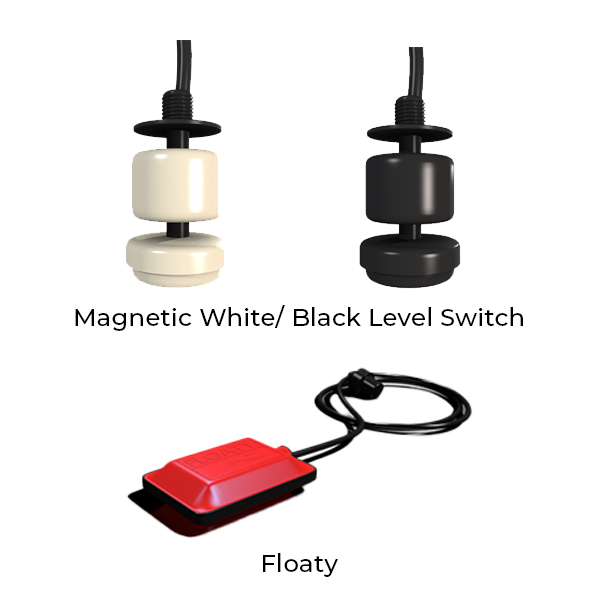

Magnetic White/ Black Level Switch

Mechanical level switch for liquids. The magnet-equipped float follows the actual level of the liquid and magnetically triggers a reed switch in an identified and fixed position.

Key Features

• TWO SWITCHES enough to automatically start/ stop any pump (coupled with the contactor coil)
• Good REPEATABILITY
• All plastic construction CORROSION FREE
• NON-CONTACT SENSING ELEMENT
• COMPACT DESIGN enables level sensing with in ±5mm
• HYSTERESIS (ON level/ OFF level) can be easily set at site by locating the level switch up/down along the side walls of the tank

Technical Specifications

• Media Temperature : Max 60°C
• Cable Length : 2 Meters (2 Core)
• Overall Dimensions : 60mm (H) x 40mm (W)
• Models : Black/ White
• Body : Norryl
• Float : Norryl
• Wire : PVC insulated
• Switching Voltage : 24 V DC
• Contact Rating : 500mA@ 230 V AC
• Protection Class : IP 68
• Switch Type :
  • White : Normally open contact (the contact happens in the lifted positions)
  • Black : Normally closed contact (the contact happens when the float is down)

Floaty

Float Operated Level Switches

The Floaty Level Switch Closes Or Opens, Depending On Wiring, Upon Reaching Of An Upper Or Lower Switch Point And Actuates Or Cuts The Pump.

Key Features

• Adjustable level differential from 0.5 to 2 METERS
• Case & cable hermetically sealed by  PLASTIC INJECTION MOULDING
• CORROSION FREE, LONG LIFE & RUST PROOF
• Suitable for SLUDGE & EFFLUENT TREATMENT
• No current/voltage is passed through water, thus no thus no electrolysis salt deposition
• Can be used in HARD WATER –fuel such as diesel, kerosene, oil etc

Specifications

• Media Temperature : Max 60°C
• Cable Length : 2 Meters (5/10meter optional) 3 Core
• Overall Dimensions :130mm (H) x 90mm (W) x 50mm(D)
• Repeatability : ±50mm
• Body : PP
• Float : PP
• Wire : PVC insulated
• Weights : MS(ABS Encapsulated)
• Switching Voltage : 12 V DC / 230 AC
• Contact Rating :15A@ 230 V
• Protection Class : IP 68

Mag Flow 650 provides a worry free flow measurement, which measures the flow of any conductive fluid flowing through it. It uses non-intrusive measurement elements so that any kind of debris/solids will not interfere with the measurement. Its rugged rubber lining provides outstanding electrical insulating properties, and is well designed for the industrial waste and water industry. The performance is independent of material properties such as correction, viscosity, density etc, as all mag flow meters are individually calibrated.

Features

• Ideal for Waste Water
• Suitable for any type of Conductive Fluid
• Negligible Pressure Drop
• Unaffected by Density or Viscosity
• High Turn-Down Ratio
• Ideal for Outdoor Installation
• 270° Display Rotation Possible
• Communication Ready for Monitoring / Data Logging
• High Accuracy
• Reversing Flow Warning
• No Moving Parts to Wear and Break
• All Meters Individually Calibrated

Principal

The instrument works on Faraday’s law of electromagnetic Induction. The magnetic field is generated around the measuring tube by instrument. The fluid passing through the measuring tube generates a voltage. This voltage is directly proportional to the velocity of the flow. Thus the flow is measured and displayed on the indicator.

Key Attributes

• Unique design allows indicator display rotation upto 270°
• Suitable for any type of conductive fluid
• Negligible pressure drop
• Unaffected by density or viscosity
• High turn-down ratio
• Ideal for outdoor installation
• Communication ready for monitoring/data logging
• High accuracy
• Reverse flow warning
• No moving parts to wear and break
• All meters individually calibrate

Specification (Indicator)

• Physical dimensions : 160 x 160 x 90mm
• Enclosure : Cast Aluminium, Weather proof IP 65
• Mounting : Field(Direct on Sensor)
• Input supply : 230 V A.C.± 15%
• Display Range : 0-999999.9 m³ / 0-9999999 liters
• Flow rate sampling : 2 Second
• Accuracy : ± 2 % FSD
• Display : 16 x 2 Alphanumeric LCD
• Calibration/set point : Using front panel keypad
• Linearity : ± 0.5 %
• Output : RS 485/4-20 mA current (optional)

Specification (Sensor)

• Type : Full Bore
• MOC : Flange – Mild Steel Electrode SS316 Coil Housing – Mild Steel
• Maximum Operating Pressure: 10 Kg/cm²
• Process Temperatures : 85° C Max
• Lining : Rubber PTFE Lining(optional)
• Conductivity : >20 μs/cm
• Process Connection : BS10 Table D Flanged
• Fluid : Water/Wastewater
• Viscosity : 200 CP Max
• Cable : 3meter 3 core

Available Ranges

Oxidation-Reduction Potential (ORP), also known as redox potential, indicates how effectively water can clean itself by breaking down pollutants or enabling chemical reactions involving electron transfer. It is expressed in millivolts (mV).

When the ORP value is higher and positive—typically around +650 to +750 mV—the water has stronger oxidizing ability, meaning it can disinfect and eliminate contaminants more efficiently.

Because of this, ORP is widely used to track and control sanitization levels ( By addition of chlorine )  in systems such as swimming pools, drinking water treatment plants, wastewater facilities, and industrial operations.

Chlorine and ozone are the most common disinfectants used in the water and waste water industry. Oxidation- Reduction Potential is the parameter commonly used to measure the REDOX reactions and it is the only practical method we have to electronically monitor disinfectant’s effectiveness.

Key Features

• TRACEABILITY to National Standards
• PUSH BUTTON FRONT KEYS for easy set up
• INDIVIDUAL HIGH & LOW SET POINT RELAY for alarm or signal to PLC or can be used for proportional acid/alkali dosing
• PROGRAMMABLE CONTROL DELAY TIME to prevent chattering
• HYSTERISIS TO PREVENT RELAY CHATTERING
• IN-BUILT DIAGNOSTICS for wrong calibration or sensor error
• IN-BUILT ALARM ANNUNCIATOR
• MANUAL/AUTOMATIC relay reset options
• AUTOMATIC TEMPERATURE COMPENSATION (for pH)
• RS 485 for online monitoring/ data logging
• ISOLATED 4-20 mA OUTPUT with normal/inverse function and in-built current simulator

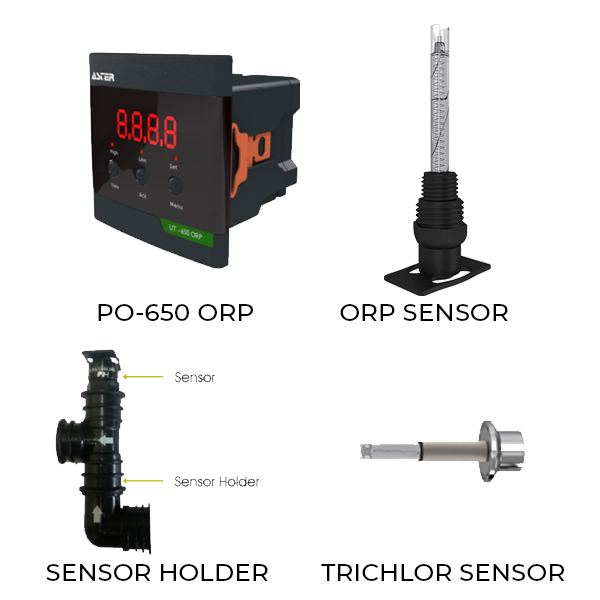

SPECIFICATIONS (PO 650 ORP METER)

• Physical dimensions : 105 x 105 x 130mm
• Cut-out size : 90 x 90 mm
• Enclosure : ABS weather proof IP-65
• Mounting : Field/ Pipe/ Panel
• Input supply : 230 V A.C./110 V A.C./ 24 V D.C
• Alarm : Separate LED indication for high & low
• Control Operation : Alarm/ auto reset/ control
• Accuracy : ± 2% FSD
• Display : 4 digit 7 segment LED display
• Calibration / set point : Using front keypad
• Output : 4-20mA (optional), RS 485 (optional)
• Relay : Individual high & low relay 5A@ 230V (programmable through entire range with set-able control delay & hyteresis)

SPECIFIACTIONS  (PO 650 ORP SENSOR)

• Overall Dimensions : 140mm (L) x 32mm (W)
• Type : Flow Through/Tank (optional)
• Sensor Output : Milli Volt
• Electrode Material: Glass bulb with epoxy body*
• Process Connection : 20 NB/ 15 NB M
• Cable : 1 Core Shielded 5 meter
• Cable Termination : 0.75mm² lugs
• Max. Temperature : 0-60°C, 0-100°C (with ATC optional)
• Max. Pressure : 5 Kg/Cm ²
• Installation : In vertical line
• Sensor Holder : MOC: ABS/Norryl with 20 NB, BSPF end connections, *Glass body for ATC Application

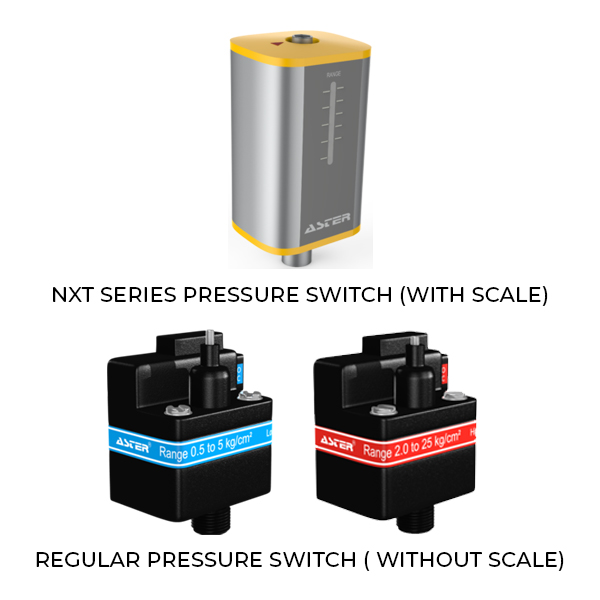

NXT Series Pressure Switch

Our  NXT series pressure switches work under the harshest operating conditions, as they have a robust metallic body and corrosion free wetted parts. This new patented pressure switch is as accurate as it comes with a high resolution scale for set point adjustment.

Features

• Robust Metal Body
• All plastic corrosion free Wetted parts
• Adjustable Set Point
• Compact Patented Design
• Both NO/ NC Contact
• High Resolution Scale
• Fixed Hysteresis
• Easy To Install

Regular Pressure Switch

We also offer Low or High Pressure Switches without scale. Set Point can be adjusted by an Allen Key. Pressure switches are essentially meant for ON/ OFF control applications.

Features

• All plastic CORROSION FREE wetted parts
• Set point adjustable with CENTRAL GRUB SCREW
• Both NO NC CONTACTS
• FIXED HYSTERESIS
• EASY TO INSTALL
• Excellent REPEATABILITY

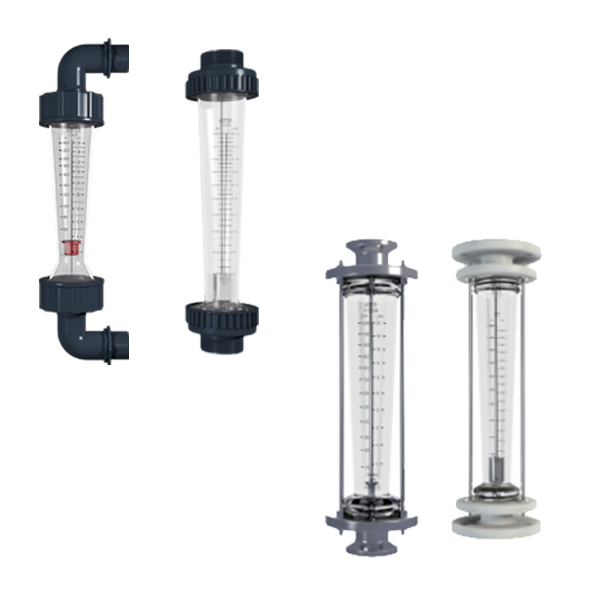

A Rotameter’s operation is based on the variable area principle: fluid flow raises a float in a tapered tube, increasing the area for passage of the fluid.
The greater the flow, the higher the float is raised. The height of the float is directly proportional to the flow rate.
The float reaches the stable position in the tube when the upward force entered by the flowing liquid equals to the downwards gravitational force entered by the weight of float.

We offer a comprehensive range of rotameters designed to meet the varied requirements of different industries. Our products are recognized for superior build quality, precise measurement accuracy, and cost-effective pricing.

KEY FEATURES

• Complete flow range from 10 LPH up to 60000 LPH. Available from 15NB end connection to 65NB end connections.
• Over 15 different models to suit all ranges
• Available in on-line (Threaded/ Flanged) connection. Tri-Chlor and Panel Mounted (with elbow BSP male threaded) connections for all ranges
• Single Piece, Injection Moulded, Polycarbonate Body
• Each Rotameter is Hydro Tested at 8 kg/cm² pressure
• Tamper & Sunlight Proof Graduation Sticker
• Enhanced Meter Readability Using Precision Textured Body
• SS 316 Rod & Float for Rust-Free Usage
• Each Rotameter is Factory Calibrated
• Each Float is Buffed for Accuracy & Repeatability
• Negligible Pressure Drop

SPECIFIATIONS

• Fluid : Water
• S.G. Of Medium : 1
• Max. Operating Pressure : 5 kg/cm²
• Max. Operating Temperature : 60°C
• Accuracy : ± 2% of FS
• Scale Graduation : LPH/LPM
• End Connection : 15 NB to 65 NB BSP
• Configuration :
  • Inlet : Bottom
  • Outlet : Top
•  Mounting : Panel/Online
•  Scale Sticker : Temper Proof
• Float : SS 316
• Body Material : Polycarbonate
• Nut/End Nipple Material : ABS
• O – Rings : Nitry/Rubber

All dimensions are in mm

Note:

• F20000 and F30000 also available in 65 NB end connections for panel mount.
• Suffix ‘E’ should be used for Panel mount and ‘O’ for Online.
• For Panel mount rotameter, the panel should have two holes of *D mm dia with a centre to centre distance of **h mm as per technical specification.

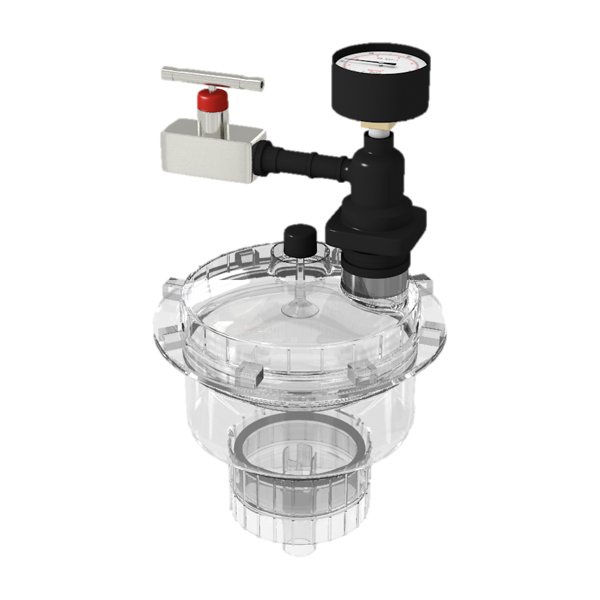

Suspended solids and colloidal matter in feed water are among the most common causes of fouling in reverse osmosis (RO) systems. Although most systems include pretreatment with a 5-micron prefilter, ultra-fine particles can still pass through and accumulate on RO membranes, reducing performance and membrane life.
Our SDI Kit offers a simple, reliable, and effective method to monitor feed water quality and identify fouling potential before it impacts the membranes.
This helps users take preventive action, improve RO efficiency, and extend membrane lifespan.
Our SDI kit provides simple and effective solutions to preempt the possibility of membrane fouling.
Every water treatment plant should have an SDI Kit to safeguard membrane performance as it is amust-have monitoring tool for all water treatment and RO plants.
No water treatment plant is complete without a reliable SDI Kit.

Key Features

• Integral SS Needle Valve for Pressure Control
• Quick Release Coupling Making Multi-point Sampling Convenient
• 40mm dia. 0-4 kg/cm2 On Line Pressure Gauge
• Automatic Air Release Valve
• Transparent Body
• 500 ml Beaker for Sampling
• Best Way to Enhance the Life of Membrane

Technical Specifications

• Material : Polycarbonate/ABS
• Sealing : Silicon O-Ring
• Filter Specs : 47mm dia. 0.45micron
• Filtration Area : 5cm²
• Capacity : 250ml Housing & 500ml Beaker
• Connections Inlet : ¼”F Threaded Needle Valve, ¼”F for Pressure Gauge
• Operating/ Test Pressure : 2/3 kg/cm²
• Inlet Connection : 8 NB (F) threaded needle valve, 8 NB (F) Pressure Gauge (0-4,2 kg/cm 2)
• Test Pressure : 3.0 kg/cm

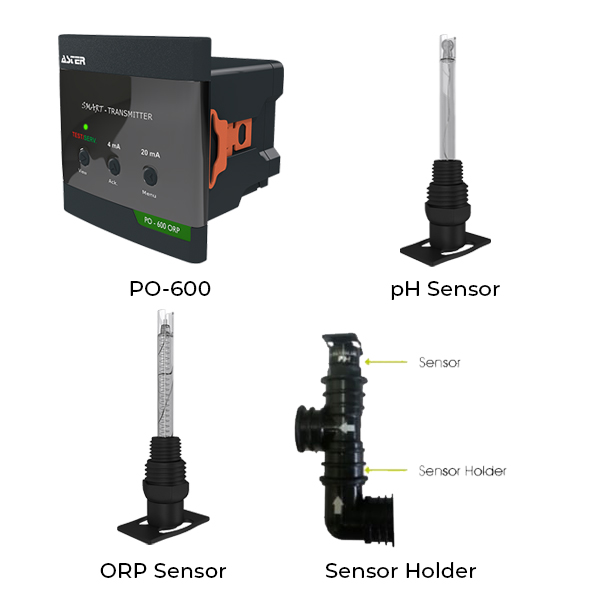

Our Smart Transmitter is ideal for monitoring applications, especially in hard-to-reach or cost prohibitive locations. Smart Transmitter measures pH or ORP and is compatible with most pH and ORP sensors. The transmitter has a rugged, ABS weatherproof and corrosion resistant enclosure. Smart Transmitter send process measurements from different areas in plant to central PLC/RO-Matic/Universal Indicator, Where process control decision can be made based on transmitter feedback. Smart transmitters are great cost saving alternatives to single point controllers. In situations where multiple sensing locations are required, single point controllers cost can add up quickly.

Key Features

• Traceable to National Standards
• 3 Wire Design Eliminating the Need of External 230V Supply
• Multi-color LED for Meter / Sensor Status
• Can be Installed Directly on Sensor
• Calibration Using Multi-turn Trim Pot
• In-built Current Simulator for Easy Synchronizing with PLC or Panel Indicator
• Optionally available with remote monitoring system

PO 600 Specifications

• Physical dimensions : 105 x 105 x 130mm
• Cut-out size : 90 x 90 mm
• Enclosure : ABS weather proof IP-65
• Mounting : Field/ Pipe
• Input supply : 8 to 24V D.C.
• Accuracy : ± 2% FSD
• Calibration : Using trim pots
• Output : Isolated 4-20 mA
• Measuring Range:

               ORP :  -500 mV to +500 mV, -1000 mV to +1000 mV (optional)

               PH :   0 to 14

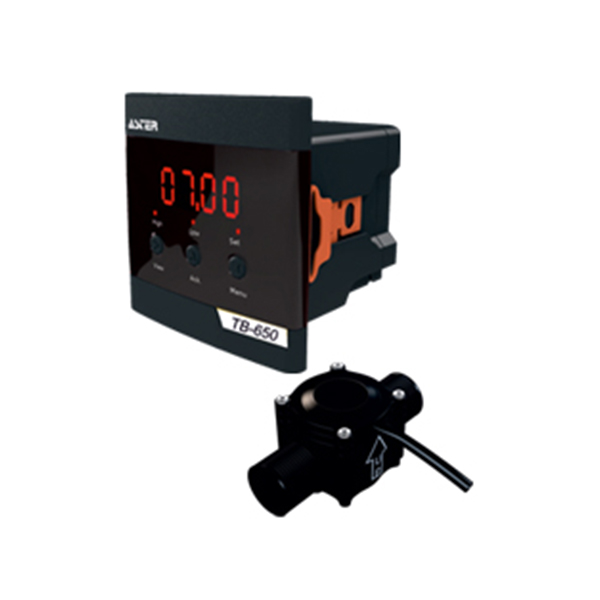

Turbidity is a measure of the natural clarity of a liquid. It indicates the degree to which water loses its transparency due to the presence of suspended articles. The higher the concentration of total suspended solids (TSS) in the water, the greater the turbidity level.

Turbidity is widely regarded as an important indicator of water quality, making it a critical parameter in water treatment and process monitoring applications.

With out  trusted water treatment expertise, our turbidity meter delivers dependable performance for accurate monitoring and better decision-making in plant operations.

It is a must-have instrument for every water/waste water treatment plant to ensure consistent water quality.

TB 650

Range: 0 to 2000 NTU

Resolution: 1

Key Features

• TRACEABILITY to National Standards
• PUSH BUTTON FRONT KEYS for easy set up
• INDIVIDUAL HIGH & LOW SET POINT RELAY for alarm or signal to PLC
• PROGRAMMABLE CONTROL DELAY TIME to prevent chattering
• HYSTERISIS TO PREVENT RELAY CHATTERING (Hysterisis is the percentage of set point below/above which relay will reset after getting energized)
• IN-BUILT DIAGNOSTICS for wrong calibration or sensor error
• IN-BUILT ALARM ANNUNCIATOR

It’s a facility to acknowledge high/low fault condition and reset relays

• MANUAL/AUTOMATIC relay reset options

Technical Specifications (METER TB 650)

Technical Specifications (SENSOR TB 650)

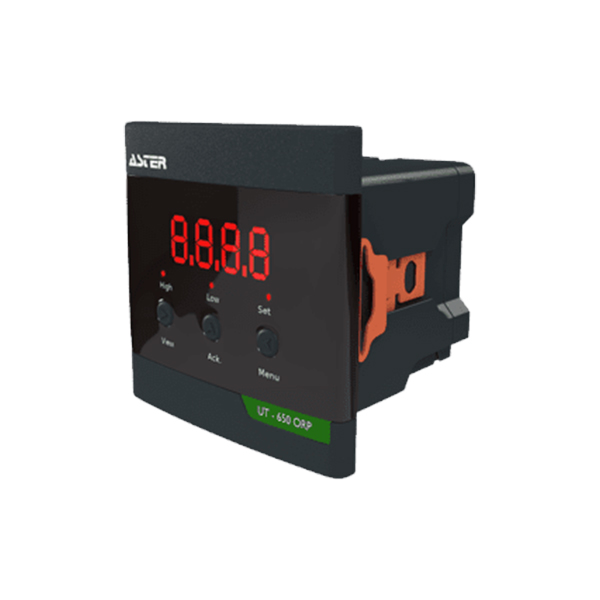

Our range of universal panel indicators is appreciated for its high accuracy, easy installation, compact design and optimum functionality. The models can be used for both simple ‘measurement only’ applications and in more demanding situations where digital communications, alarms and complex signal conditioning is required.

Key Attribute

• Suitable for 2/3/4 wire field transmitter
• IN-BUILT D.C. SUPPLY SOURCE field transmitter (like PO 600 or Pressure transmitter )
• RESOLUTION IS SETABLE FROM 0.001 TO 1
• IN-BUILT ALARM ANNUNCIATOR acknowledgment facility.
• Used to display parameter values like pH/ORP/Conductivity/TDS/Pressure/Level/Temp./Flow/DO with 2 relay output for high & low set points
• HYSTERISIS & CONTROL DELAY Hysterisis is the percentage of set point below /above which relay will reset after getting energized
• RETRANSMISSION THROUGH RS 485 OR 4-20MA O/P

Specifications

• Physical Dimensions : 105 x 105 x 130mm
• Cut-out Size : 90 x 90mm
• Enclosure : ABS weather proof IP- 65
• Display : 4 digit 7 segment LED display
• Mounting : Field/ Pipe/ Panel
• Input Supply : 230 V A.C.
• Alarms : Separate LED Indication for high & low
• Relay : Individual high & low relay 5A@ 230V (programmable through entire range with set-able control delay & hyteresis)
• Control Operation : Alarm/ auto reset/ control
• Accuracy : ± 2% FSD
• Resolution : 0.001 to 1
• Calibration/set point : Using front keypad
• Output : 4-20 mA/RS485 (optional)
