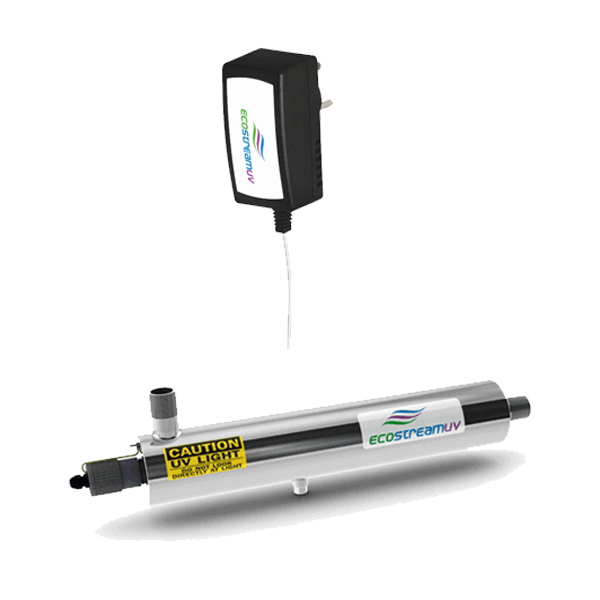

ECOSTREAM LITE SERIES IS BEST SUITAED FOR DRINKING WATER/ COMMERCIAL APPLICATIONS.THIS SERIES IS BEST UV DISINFECTION SOLUTION AT BUDGET PRICE.

* All products are undergoing continuous improvements and
specifications subject to change at any time. Please consult Alfaa UV in case of any doubt.

The UV IQ Series of UV systems has been introduced to address the need for a high performance but economically priced  UV system for the disinfection of drinking water and general purpose light industrial applications. The  UV IQ Series system is backed by the extensive R&D that goes into each and every Alfaa UV product, and the best in its class after sales service and support. UV technology can be a better and safer solution.

The UV IQ Series Platform encompasses our ECS, ETC, ECU and OZD series. Its modular design enables customization through mixing and matching of compatible components, allowing for tailored solutions to meet specific application and customer needs.

A uv system designed  for drinking pure water will not work in waste water.

The uv transmission of the water being disinfected is an essential factor while sizing a uv system.

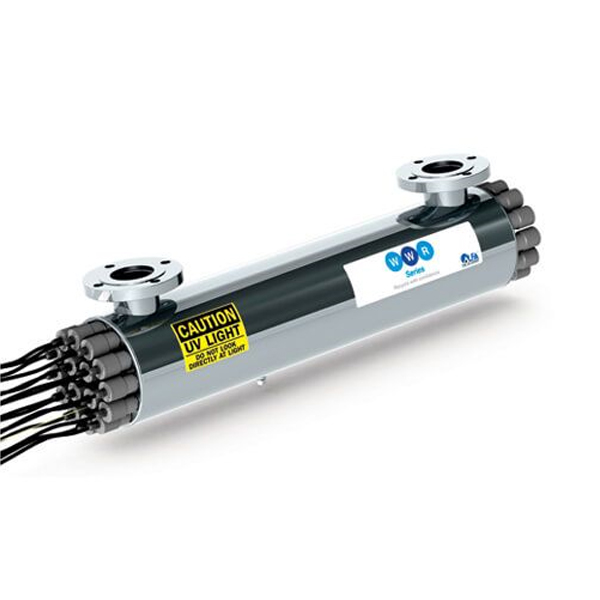

WW series  is introduced to address the growing need for a reliable & environmentally responsible way to disinfect and reuse wastewater in these water starved times.

Unlike ordinary UV systems the WW Series is designed to effectively handle challenges posed by the complexity of tertiary treated wastewater having low UV transmission due to high amounts of BOD, COD and TSS.UV Technology ensures superior disinfection at lower capital and operating costs.

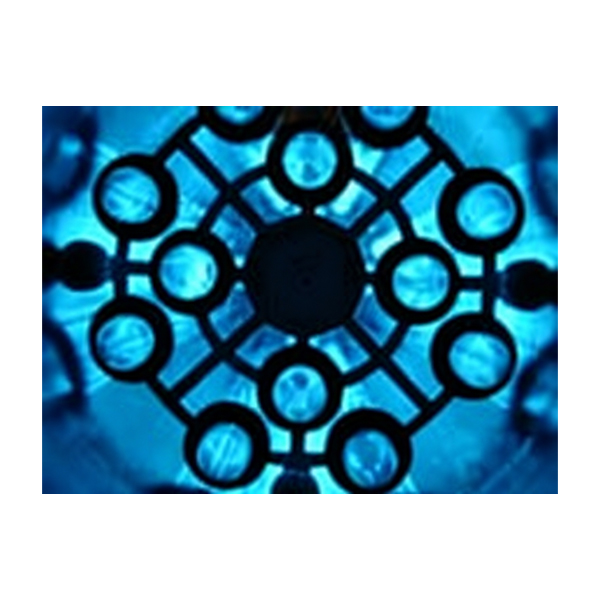

High Output Amalgam Lamp Technology

UV Technology   WW series uses high output Amalgam lamp technology to generate a higher UV dose to tackle high BOD, turbidity, and TSS. This results in a smaller footprint, simplified maintenance and lower operating costs.

UV Monitoring System (OPTIONAL)

A highly accurate and calibrated UV sensor encapsulated in a watertight stainless steel housing continuously measures the UV output within the reactor. It also triggers automated wiping cycles in order to self correct in case the drop in UV intensity is due to fouling of the quartz.

Our Waste Water UV Disinfection Series is designed to provide reliable and chemical-free disinfection for municipal and industrial wastewater treatment applications. Utilizing high-intensity ultraviolet technology, these systems effectively inactivate bacteria, viruses, and other microorganisms without altering water chemistry, making them an environmentally responsible solution for wastewater reuse and discharge compliance.

Manufactured with a robust SS316L stainless steel reactor chamber and high-purity quartz sleeves, the systems are engineered for continuous operation in demanding wastewater environments. The range covers flow capacities from 3 m³/hr to 42 m³/hr, ensuring suitability for small treatment plants as well as large-scale industrial facilities.

Key Features

• UV Dose: 60 mJ/cm² for effective microbial disinfection
• Reactor Material: SS316L Stainless Steel
• High Purity Quartz Lamp Sleeves
• Food Grade EPDM O-rings and Seals
• UV Lamp Failure Indication Included
• Operating Voltage: 220–240V, 50/60Hz
• Maximum Operating Pressure: 80 psi
• Recommended Water Temperature: 18°C – 45°C
• Maximum Sanitization Temperature (Lamp Off): 85°C
• Suitable for UV Transmittance up to 65% UVT
• Cable Length: 4.5 m
• Low maintenance and environmentally friendly operation
• No chemicals, no by-products, and no change in taste, odor, or pH

Typical Applications

• Municipal Wastewater Treatment Plants (STP)
• Industrial Effluent Treatment Plants (ETP)
• Water Reuse and Recycling Systems
• Food & Beverage Processing
• Pharmaceutical Industries
• Textile and Chemical Industries
• Cooling Tower Blowdown Treatment
• Process Water Disinfection
• Irrigation and Reclaimed Water Applications

Benefits

Our Waste Water UV Systems deliver consistent disinfection performance, reduced operating costs, and compliance with stringent wastewater discharge standards. The compact design, durable construction, and automated monitoring features ensure dependable operation with minimal maintenance requirements.

WWR Waste Water UV Disinfection Systems

Standard Specification

Application

• Sewage Treatment Plants (STP)
• Effluent Treatment Plants (ETP)
• Industrial Wastewater Treatment
• Water Reuse & Recycling Systems
• Food & Beverage Industries
• Pharmaceutical Industries
• Textile Industries
• Municipal Wastewater Disinfection

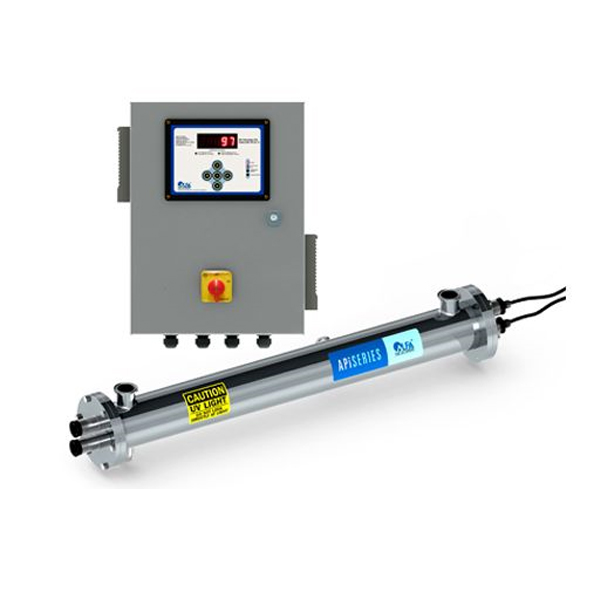

API SERIES comes from Alfaa, company having vast experience and credibility for supply of UV systems for critical process water applications.

Today, this UV systems have earned the trust and goodwill of organizations such as Glaxo Smithkline Beecham, Ford Motors, Hindustan Lever Limited, Colgate Palmolive.

Features and Benefits of APi UV Lamp Series

• Robust membrane keypad and user interface for all controller data.
• UV Intensity and temperature monitoring and alarm with safety cutoff.
• MODBUS (RS485) protocol for fully digital interconnect to PCs or PLCs.
• Data logging of all critical UV parameters to compliant SCADA systems.
• Resettable UV lamp hour counter.
• System hour counter.
• End-Of-Lamp-Life alarm.
• Common fault contact.
• Low UV contact.

* When sizing for high dose (HD) application use the corresponding HD product code while ordering.

^ Flow rate might be limited by line size, pressure, and other hydraulic considerations.
